Kia Cee'd: ABS(Anti-Lock Brake System) / ABS Control Module Components and components location
Kia Cee'd JD Service Manual / Brake System / ABS(Anti-Lock Brake System) / ABS Control Module Components and components location

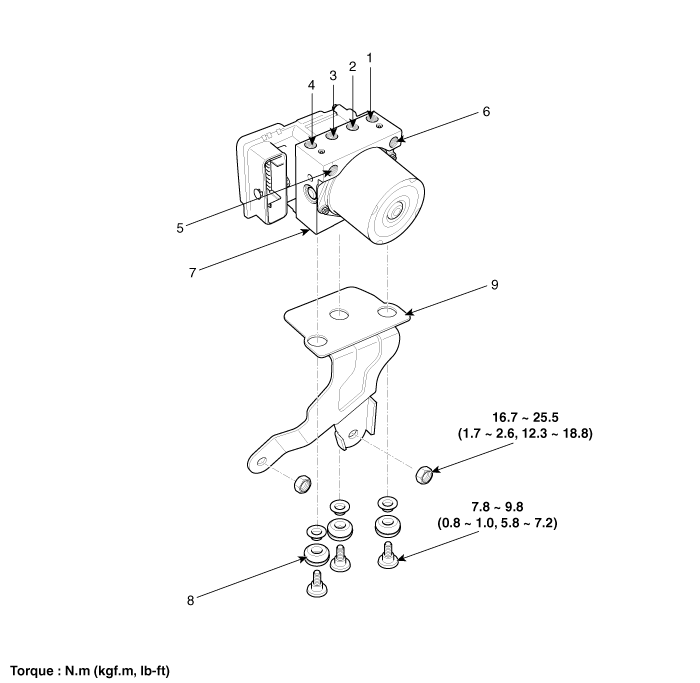

| Components |
| 1. Front - left tube 2. Rear - right tube 3. Rear - left tube 4. Front - right tube 5. MC2 |
6. MC1 7. ABS control module(HECU) 8. Damper 9. Bracket |
EBD(Electronic Brake-force Distribution) Description and operation
Description
The EBD system (Electronic Brake force Distribution) as a sub-system of the
ABS system is to control the effective adhesion utilization by the rear wheels.
It ...
ABS Control Module Repair procedures
Removal [LHD]
1.
Turn the ignition switch OFF.
2.
Pull up the lock of the HECU connector (A), and then disconnect the
connector.
...
