Kia Cee'd: Headlight and front fog light aiming / Aiming point

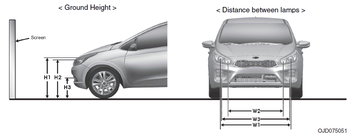

H1 : Height between the head lamp bulb center and ground (Low beam)
H2 : Height between the head lamp bulb center and ground (High beam)
H3 : Height between the fog lamp bulb center and ground
W1 : Distance between the two head lamp bulbs centers (Low beam)
W2 : Distance between the two head lamp bulbs centers (High beam)
W3 : Distance between the two fog lamp bulbs centers
■ 3,5 Door and Wagon
■ 3 and 5Door (for T-GDI)
■ 3,5 Door and Wagon (for Sports Pack)
Front fog light aiming
The front fog lamp can be aimed as the
same manner of the head lamps aiming.
With the front fog lamps and battery normal
condition, aim the front fog lamps. To
aim the front fog lamp up or d ...
Head lamp low beam (driver’s side)
■ Based on 10m screen
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the
picture.
3. When aiming the low beam, vertical ai ...
