Kia Cee'd: Charging System / Battery Components and components location
Kia Cee'd JD Service Manual / Engine Electrical System / Charging System / Battery Components and components location

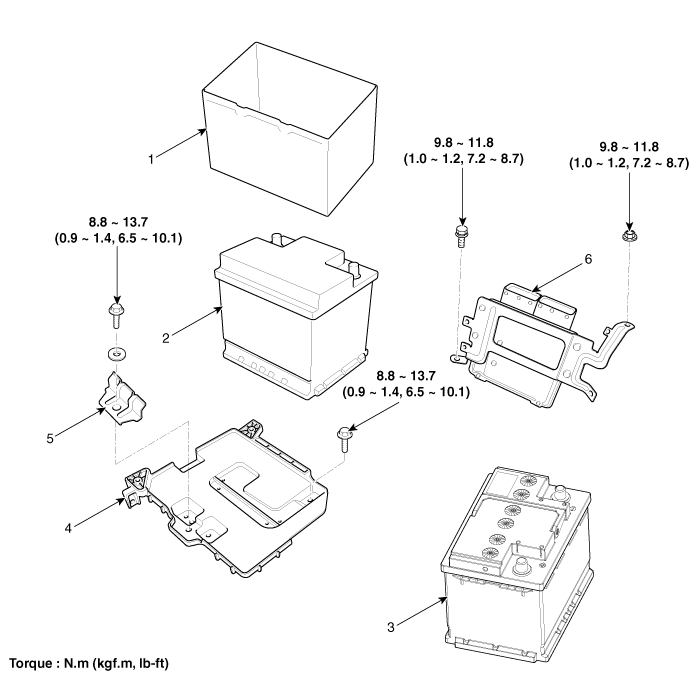

| Components |
| 1. Battery insulation pad 2. Battery (Non-ISG Type) 3. Battery (ISG Type) |
4. Battery tray 5. Battery mounting bracket 6. ECM |
Battery Description and operation
Description
1.
The MF(Maintenance Free) battery is, as the name implies, totally maintenance
free and has no removable battery cell caps.
2.
...
Battery Repair procedures
Removal
1.
Disconnect the battery (-)terminal (A) and then (+)terminal (B).
2.
Remove the air duct and air cleaner assembly.
...
