Kia Cee'd: Brake System / Brake Pedal Components and components location
Kia Cee'd JD Service Manual / Brake System / Brake System / Brake Pedal Components and components location

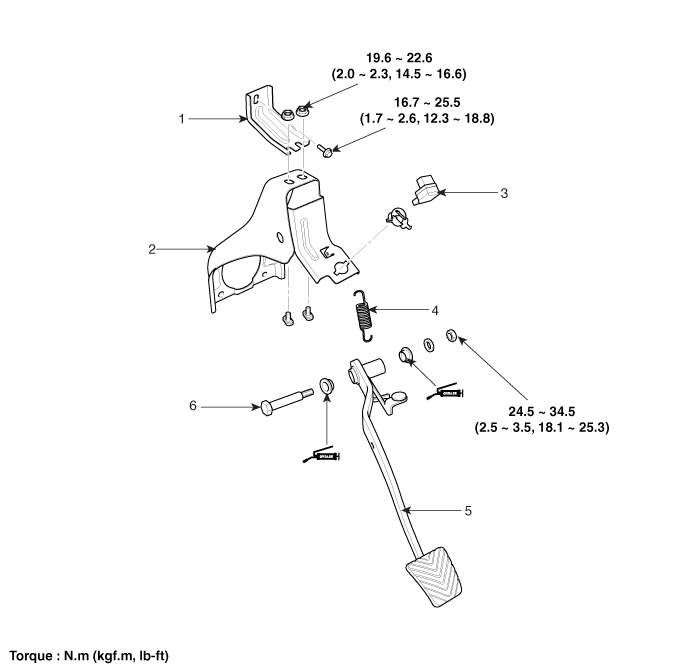

| Components [LHD] |
| 1. Cowl bracket 2. Brake pedal member assembly 3. Stop lamp switch |
4. Return spring 5. Brake pedal 6. Bolt |

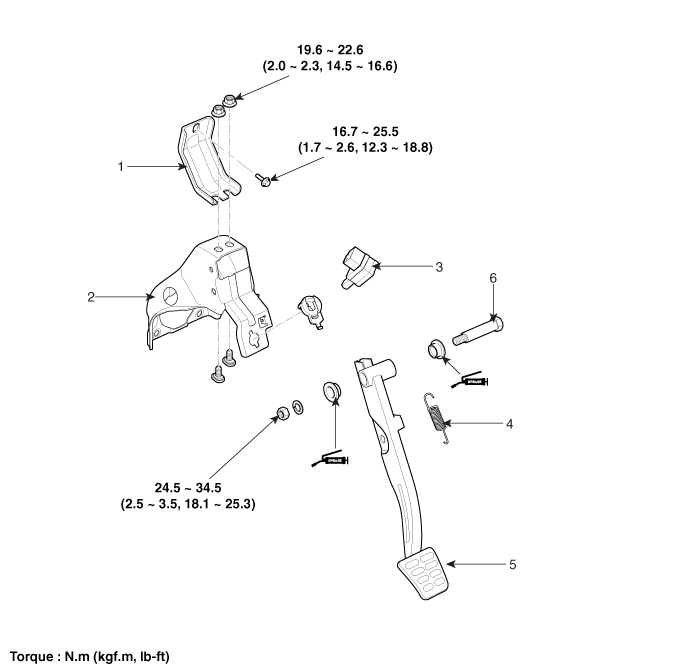

| Components [RHD] |
| 1. Cowl bracket 2. Brake pedal member assembly 3. Stop lamp switch |
4. Return spring 5. Brake pedal 6. Bolt |
