Kia Cee'd: Cylinder Head Assembly / Camshaft Components and components location

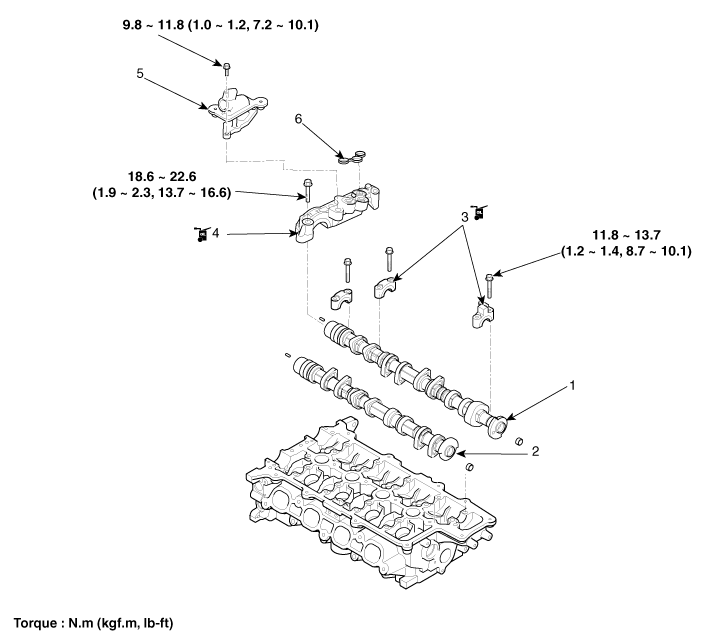

| Components |
| 1. Exhaust camshaft 2. Intake camshaft 3. Camshaft bearing cap 4. Camshaft front bearing cap |
5. OCV (Oil Control Valve) adapter
6. O-ring B 7. O-ring A |
