Kia Cee'd: Fuel Delivery System / Components and components location
Kia Cee'd JD Service Manual / Fuel System / Fuel Delivery System / Components and components location
| Components Location |
| 1. Fuel tank 2. Fuel pump 3. Fuel filter 4. Fuel pressure regulator 5. Canister 6. Fuel filler hose |
7. Leveling hose 8. Ventilation hose (Canister ↔ Atmosphere) 9. Vapor tube (Canister ↔ Intake manifold) 10. Vapor hose (Canister ↔ Fuel tank) 11. Fuel tank band |

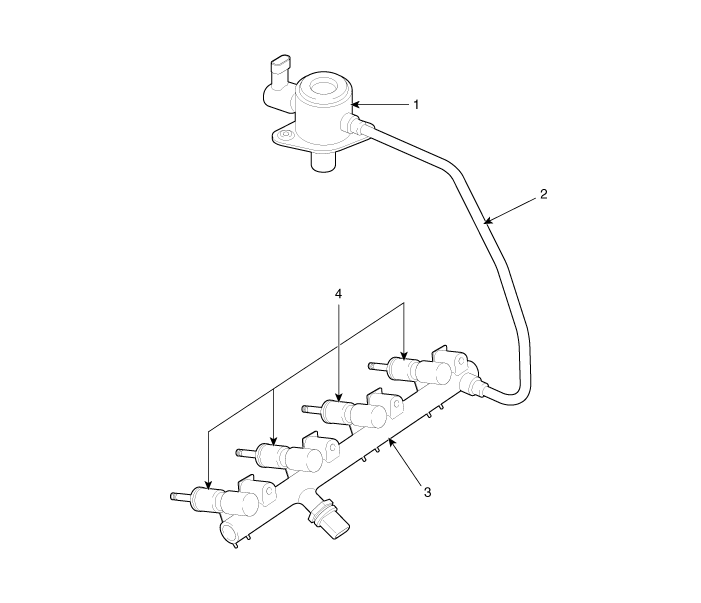

| [High Pressure Fuel Line] |
| 1. High Pressure Fuel Pump
2. High Pressure Fuel Pipe |
3. Delivery Pipe 4. Injector |
In case of removing the high pressure fuel pump, high pressure fuel
pipe, delivery pipe, and injector, there may be injury caused by leakage
of the high pressure fuel. So don’t do any repair work right after engine
stops.
|
Repair procedures
Fuel Pressure Test (Low
pressure system)
1.
Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - “Release Residual Pressure in F ...
