Kia Cee'd: Clutch Release Cylinder / Components and components location
Kia Cee'd JD Service Manual / Clutch System / Clutch Release Cylinder / Components and components location

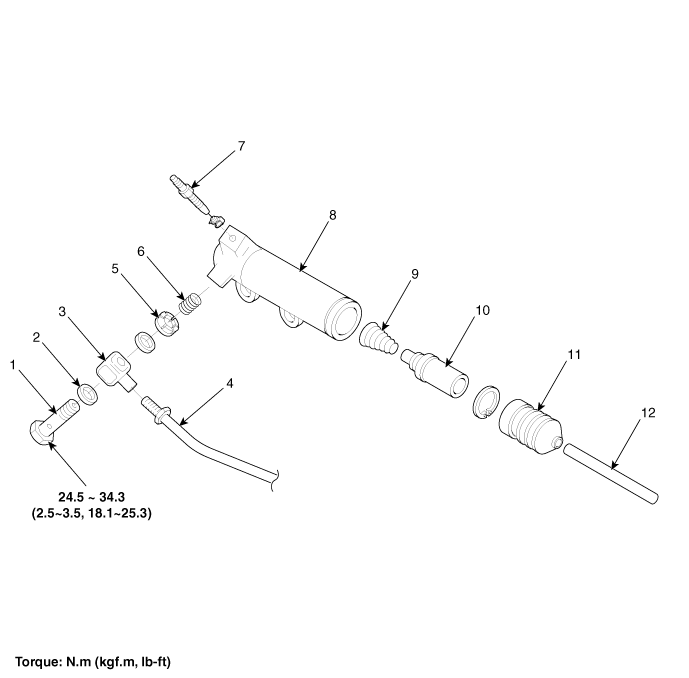

| Components |
| 1. Union bolt 2. Gasket 3. Tube joint 4. Clutch tube 5. Valve plate 6. Valve spring |
7. Bleeder screw 8. Release cylinder 9. Return spring 10. Piston 11. Boot 12. Push rod |
Repair procedures
Inspection
1.
Check the clutch release cylinder for fluid leakage.
2.
Check the clutch release cylinder boot for damage.
...
