Kia Cee'd: ABS(Anti-Lock Brake System) / Components and components location
Kia Cee'd JD Service Manual / Brake System / ABS(Anti-Lock Brake System) / Components and components location

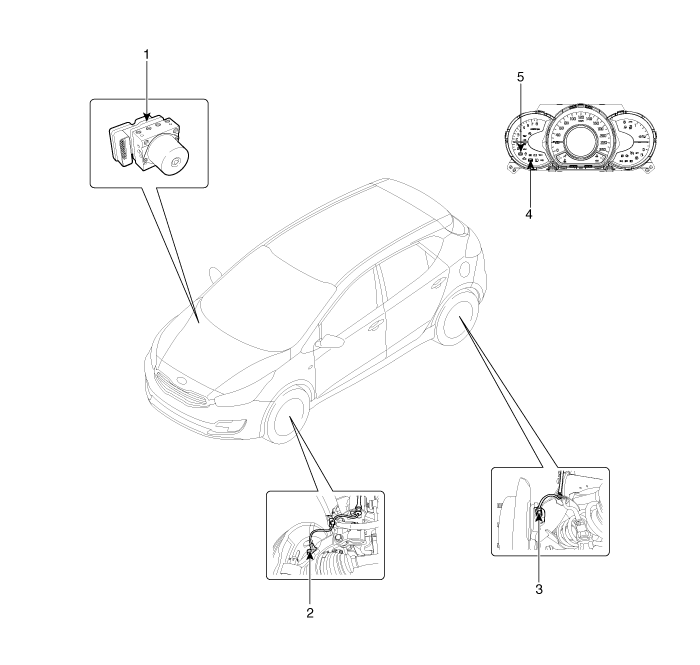

| Components |
| 1. ABS Control Module(HECU)
2. Front Wheel Speed Sensor 3. Rear Wheel Speed Sensor |
4. ABS Warning lamp 5. EBD / Parking brake warning lamp |
Description and operation
Description
This specification applies to HCU(Hydraulic Control Unit) and ECU(Electronic
Control Unit) of the HECU.(Hydraulic and Electronic Control Unit)
This specification is ...
