Kia Cee'd: Front Door / Components and components location
Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Front Door / Components and components location

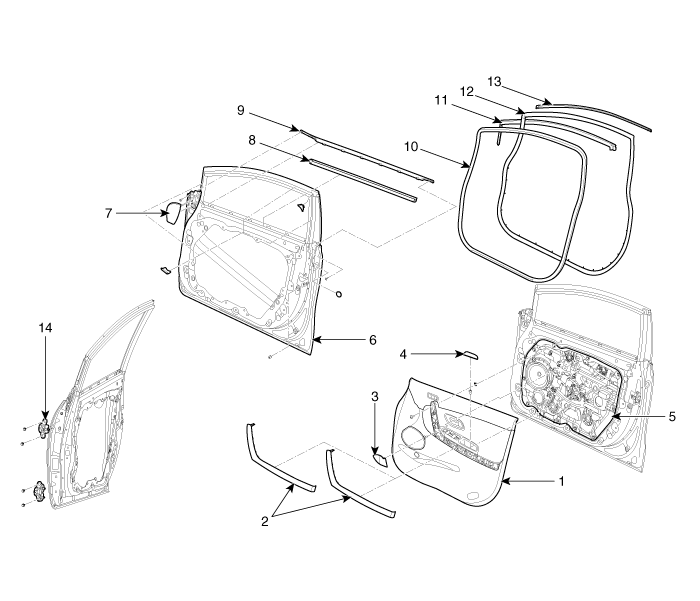

| Components |
| 1. Front door tirm 2. Front door grip handle cover 3. Front door inside handle housing 4. Front door pull handle cap 5. Front door module 6. Front door panel 7. Front door quadrant inner cover |
8. Front door belt inside weatherstrip
9. Front door belt outside weatherstrip 10. Front door body side weatherstrip 11. Front door upper opening weatherstrip 12. Front door side weatherstrip 13. Front door frame moulding 14. Front door hinge |
Front Door
...
Repair procedures
Adjustment
Glass Adjustment
•
Check the glass run channel for damage or deteriora ...
