Kia Cee'd: Panoramaroof / Components and components location
Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Panoramaroof / Components and components location

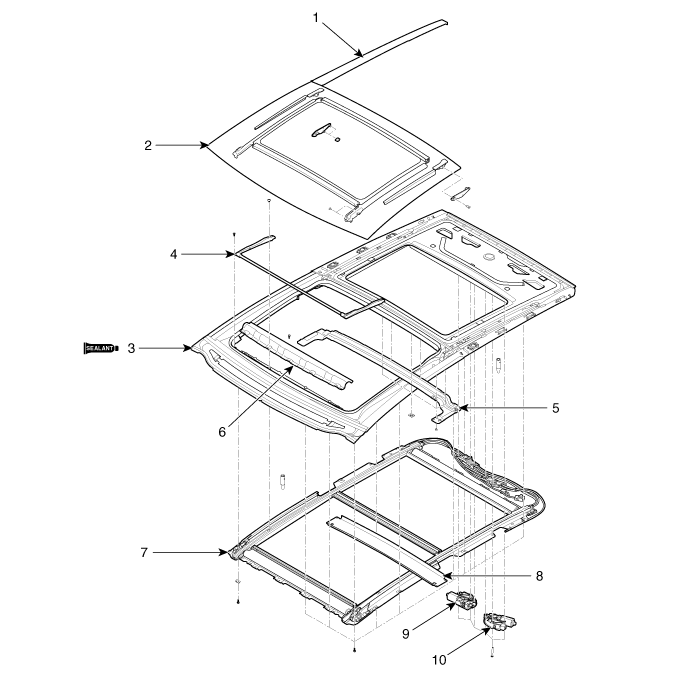

| Components (1) |
| 1. Roof side molding 2. Movable glass 3. Panoramaroof frame assembly 4. Wind deflector 5. Impact cross memeer upper assembly |
6. Front cover 7. Mechanism assembly 8. Impact cross memeer lower assembly 9. Roller blind motor assembly 10. Movable glass motor assembly |

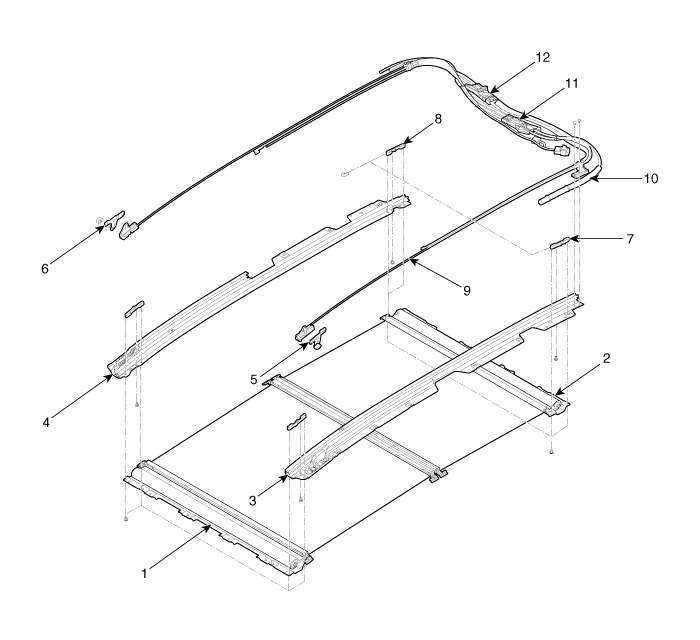

| Components (2) |
| 1. Front roller blind assembly
2. Rear roller blind assembly 3. Mechanism rail [LH] 4. Mechanism rail [RH] 5. Drive arm assembly [LH] 6. Drive arm assembly [RH] |
7. Rear roller blind deflection
[LH] 8. Rear roller blind deflection [RH] 9. Cable assembly 10. Harness assembly 11. Glass drive unit 12. Roller blind drive unit |
