Kia Cee'd: Front Bumper / Components and components location
Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Front Bumper / Components and components location

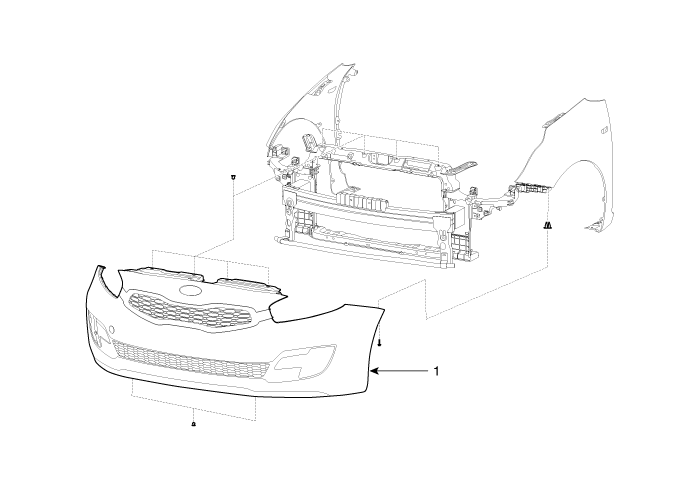

| Components (1) |
| [5Door] |
| 1. Front bumper cover |

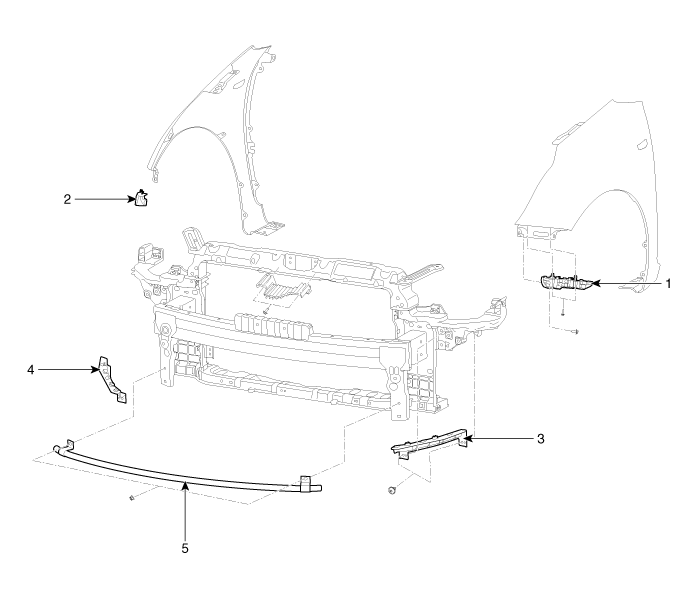

| Components (2) |
| [5Door] |
| 1. Front bumper side bracket
[LH] 2. Front bumper side bracket [RH] 3. Front bumper upper bracket [LH] |
4. Front bumper upper bracket
[RH] 5. Front bumper lower stiffner |

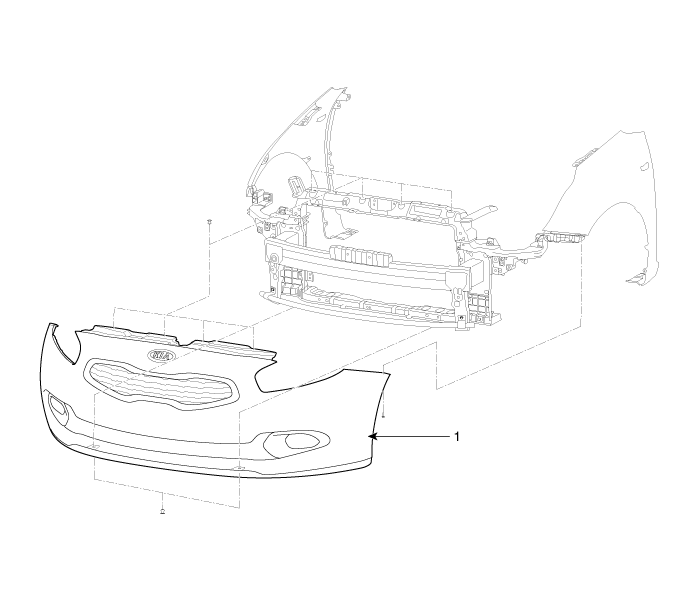

| Components (3) |
| [3Door] |
| 1. Front bumper cover |

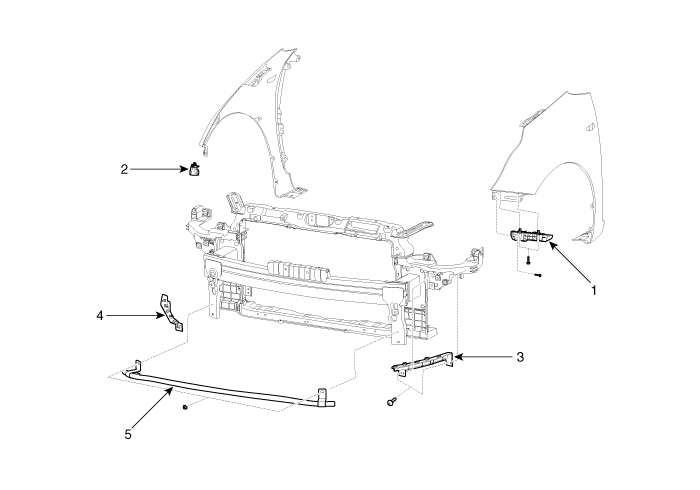

| Components (4) |
| [3Door] |
| 1. Front bumper side bracket
[LH] 2. Front bumper side bracket [RH] 3. Front bumper upper bracket [LH] |
4. Front bumper upper bracket
[RH] 5. Front bumper lower stiffner |
Front Bumper
...
Front Bumper Cover Components and components location
Component Location
1. Front bumper cover
...
