Kia Cee'd: Body Control Module (BCM) / Components and components location

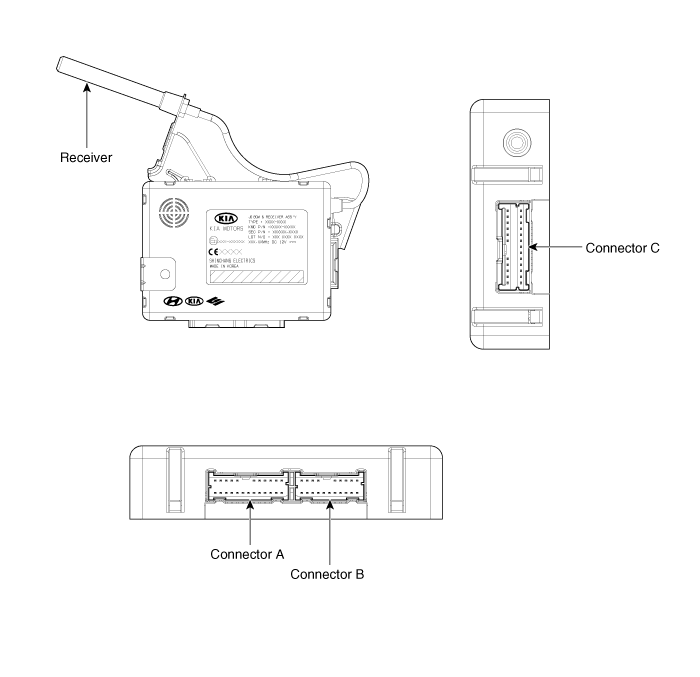

| Components |

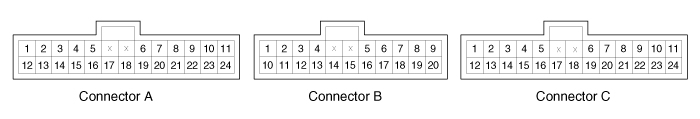

| Pin Arrangement |
|
No. |
Connector A |
Connector B |
Connector C |
|
1 |
Battery |
Head lamp high switch |
Room lamp |
|
2 |
IGN1 |
Head lamp low switch |
External buzzer |
|
3 |
IGN2 |
Side air bag switch |
Security IND |
|
4 |
ACC |
Diagnosis |
PAS off IND |
|
5 |
Wiper MIST switch |
LIN RPAS |
Safety power window |
|
6 |
Tail switch |
Auto light power |
AV tail |
|
7 |
Key In |
Auto light sensor |
Key hole illumination |
|
8 |
Crash unlock |
Auto light GND |
- |
|
9 |
Front deicer switch |
- |
- |
|
10 |
Defogger switch |
Front fog switch |
ATM solenoid |
|
11 |
Auto light switch |
Rear fog switch |
- |
|
12 |
Central door lock switch |
- |
Puddle lamp |
|
13 |
Brake switch |
- |
- |
|
14 |
Rear washer switch |
MTS Rx |
- |
|
15 |
Rear wiper switch |
MTS Tx |
- |
|
16 |
Washer switch |
CAN high |
Central door lock IND |
|
17 |
Wiper INT switch |
CAN low |
GND |
|
18 |
Rear wiper INT switch |
CAN high |
Head lamp washer relay |
|
19 |
Sunroof open switch |
CAN low |
- |
|
20 |
Key Interlock switch |
Head lamp low control |
Wiper relay |
|
21 |
Wiper INT volume |
|
- |
|
22 |
ICE warning switch |
|
- |
|
23 |
PAS off switch |
|
- |
|
24 |
GND |
|
- |
Specifications
Specifications
Items
Specifications
Rated voltage
DC 12V
Operating voltage
DC 9 ~ 16V
...
Schematic diagrams
Circuit Diagram
...
