Kia Cee'd: Seat Electrical / Components and components location
Kia Cee'd JD Service Manual / Body Electrical System / Seat Electrical / Components and components location

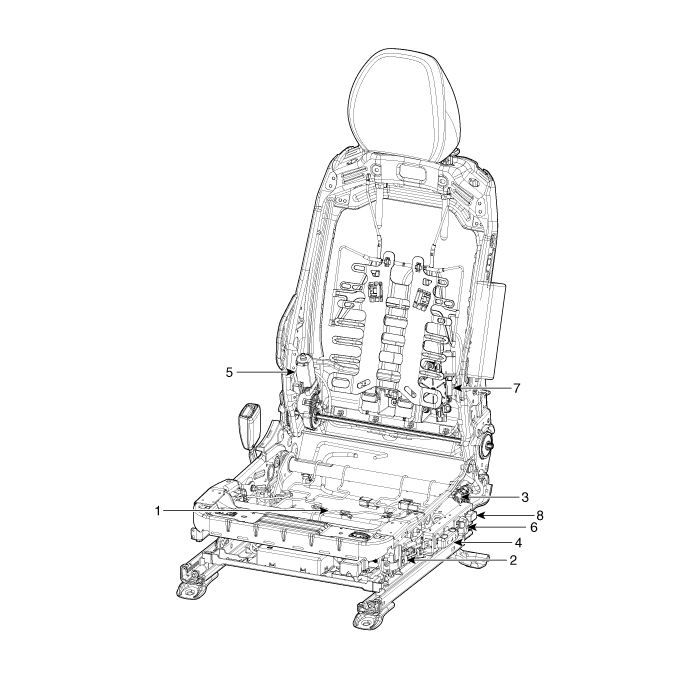

| Components |
| 1. Slide motor 2. Front height motor 3. Rear height motor 4. Power seat cotrol switch |
5. Recline motor 6. Recline control switch 7. Lumbar support motor 8. Lumbar support switch |
Seat Electrical
...
Power Seat Motor Repair procedures
Inspection
Power Seat Motor
1.
Remove the seat and all motor connectors.
A : Slide motor
D : Recline motor
...
