Kia Cee'd: Indicators and Gauges / Components and components location
Kia Cee'd JD Service Manual / Body Electrical System / Indicators and Gauges / Components and components location

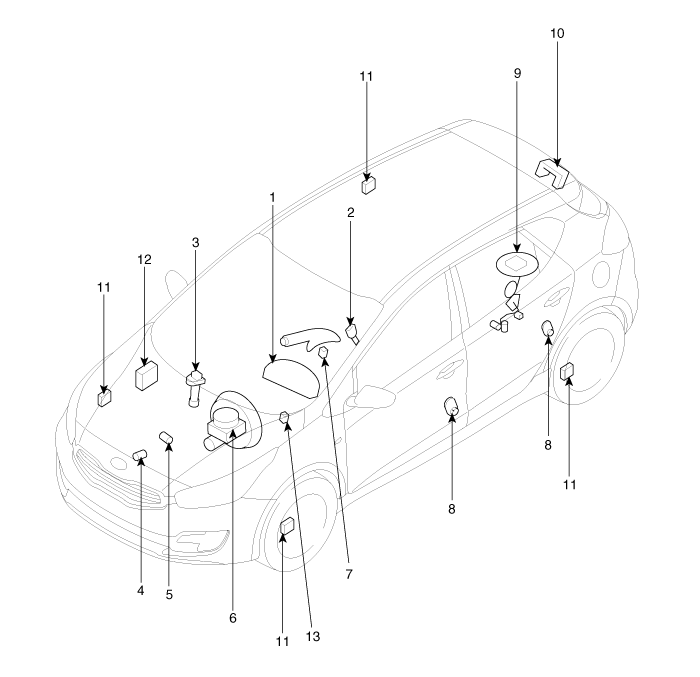

| Component Location |
| 1. Instrument cluster assembly
2. Seat belt switch 3. Vehicle speed sensor 4. Engine coolant temperature sensor 5. Oil pressure switch 6. Brake fluid level warning switch 7. Parking brake switch |
8. Door switch 9. Fuel gauge sender 10. Tailgate open switch 11. Wheel speed sensor 12. ABS ECU 13. Active ECO switch |
Troubleshooting
Troubleshooting
Symptom
Possible cause
Remedy
Tachometer does not operate
Memory2 fuse (10A) blown
C ...
