Kia Cee'd: Lighting System / Components and components location
Kia Cee'd JD Service Manual / Body Electrical System / Lighting System / Components and components location
| Component Location |

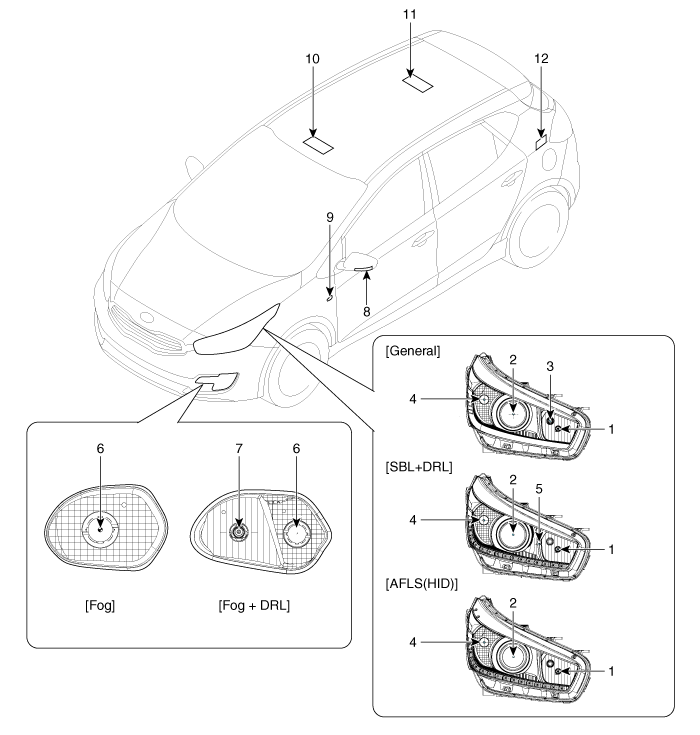

| 1. Head lamp(High) 2. Head lamp(Low) 3. Position lamp 4. Turn signal lamp |
5. Static bending lamp
6. Front fog lamp 7. DRL 8. Side repeater lamp (Door mirror) |
9. Side repeater lamp
10. Overhead console lamp 11. Room lamp 12. Luggage lamp |

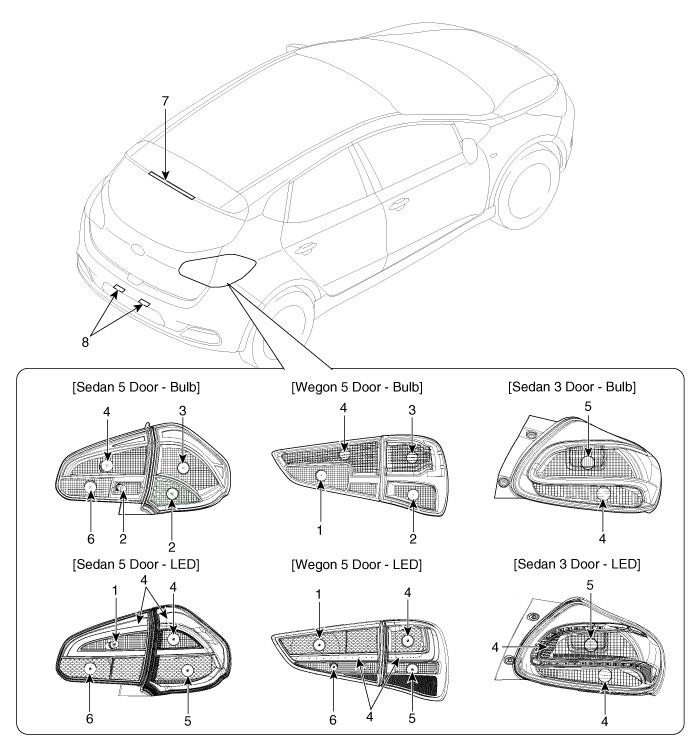

| 1. Backup lamp 2. Turn signal lamp 3. Tail/stop lamp 4. Tail lamp |
5. Stop lamp 6. Rear fog lamp 7. High mounted stop lamp 8. License lamp |
Specifications
Specification
Item
Type
Watt (W)
Head lamp
Low
H7
55
D1S
3 ...
Troubleshooting
Troubleshooting
1.
The lamp switch inputs can be checked using the GDS.
2.
To check the input value of lamp switch, select option " ...
