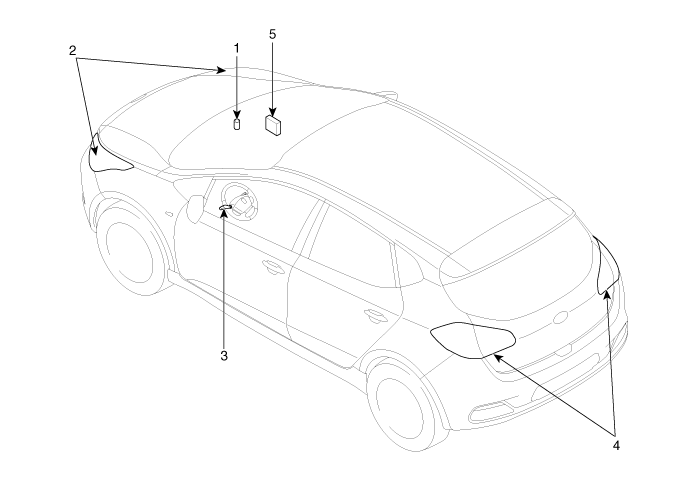

| Component Location |
| 1. Auto light sensor 2. Head lamps 3. Lighting switch (Auto) |
4. Tail lamps 5. Body control module (BCM) |
Specifications
Specifications
Items
Specifications
Rated voltage
5V
Load
Max. 1mA (When head lamp lighting)
...
Schematic diagrams
Circuit Diagram
...
