Kia Cee'd: Adaptive Front Lighting System / Components and components location
Kia Cee'd JD Service Manual / Body Electrical System / Adaptive Front Lighting System / Components and components location
| Components |

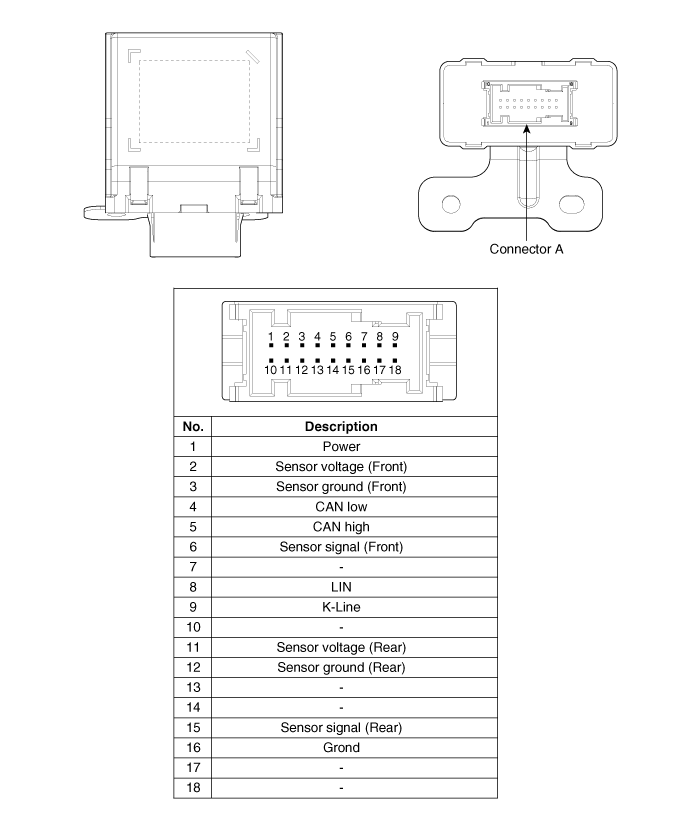

[AFLS ECU]
Specifications
Specifications
Content
Value
AFLS
Nominal voltage
DC 13.5V
Max voltage
DC 18.5V
...

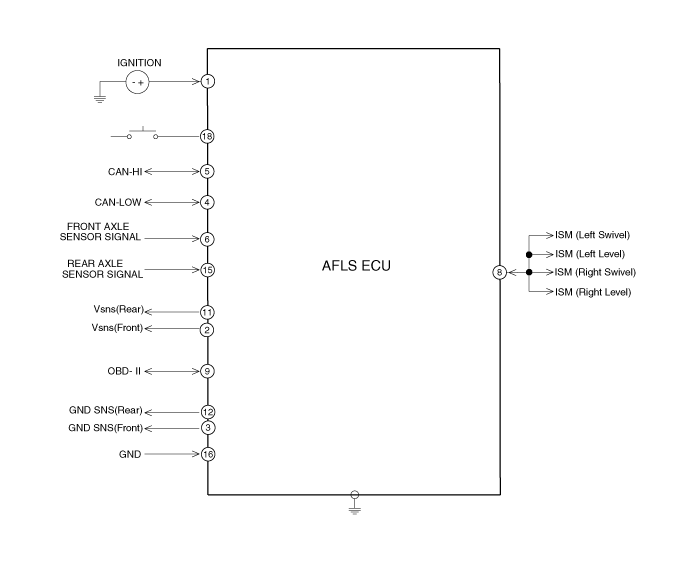

Description and operation
Description

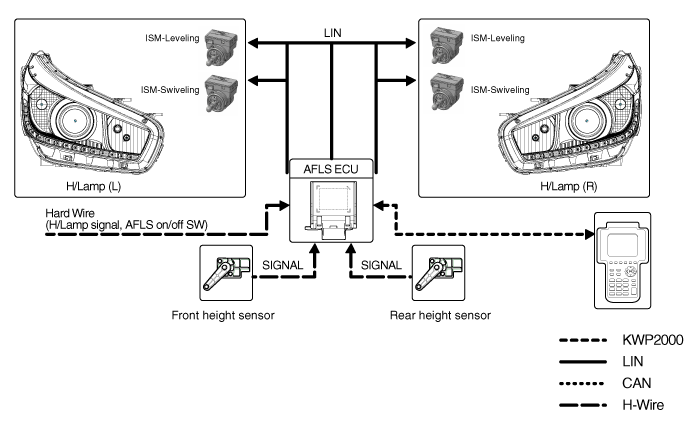

Adaptive Front-lighting System (AFLS)
AFLS(Adaptive Front-lighting System）is a headlamp orientation control system
that takes into account both steering angle and ...
