Kia Cee'd: Engine Room Under Cover / Components and components location
Kia Cee'd JD Service Manual / Engine Mechanical System / Engine Room Under Cover / Components and components location

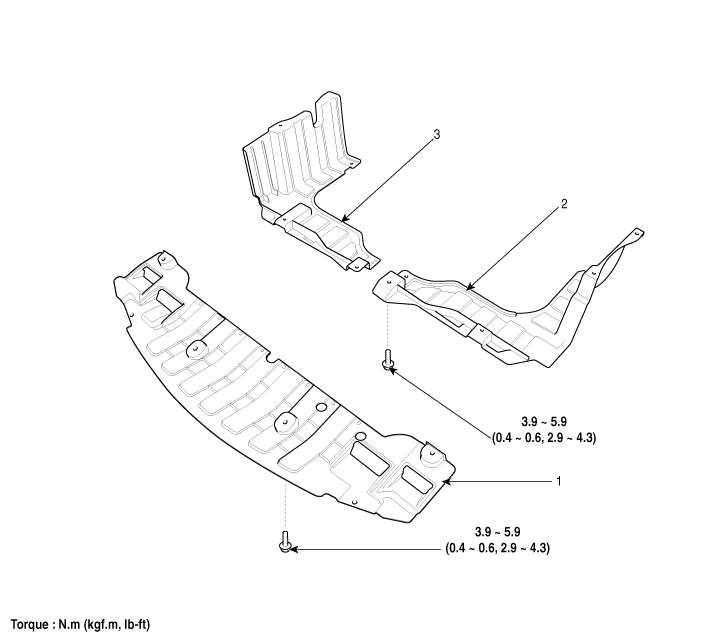

| Components |
| 1. Under
cover front pannel. 2. Engine room LH under cover |
3. Engine
room RH under cover |
Repair procedures
Removal and Installation
1.
Remove the engine room under cover (A).
Tightening torque:
3.9 ~ 5.9N.m (0.4 ~ 0.6kgf.m, 2.9 ~ 4.3 ...
