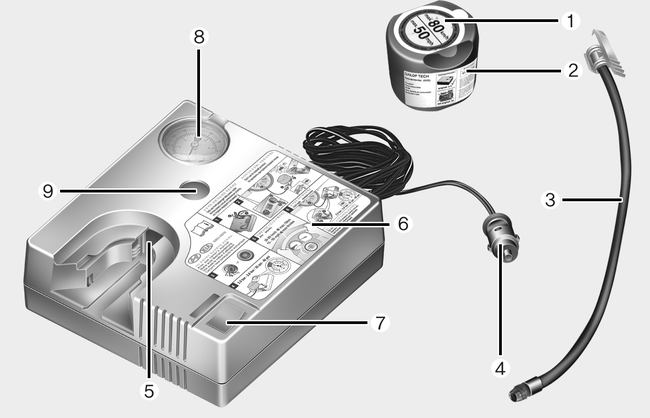

Kia Cee'd: For 15, 16 inch tire / Components of the Tire Mobility Kit
1. Speed restriction label
2. Sealant bottle and label with
speed restriction
3. Filling hose from sealant bottle to
wheel
4. Connectors and cable for the battery
direct connection
5. Holder for the sealant bottle
6. Compressor
7. On/off switch
8. Pressure gauge for displaying the
tire inflation pressure
9. Button for reducing tire inflation
Pressure
Connectors, cable and connection hose are stored in the compressor housing.
Strictly follow the specified sequence, otherwise the sealant may escape under high pressure.
WARNING - Expired sealant
Do not use the Tire sealant after the sealant has expired (i.e. pasted the expiration date on the sealant container). This can increase the risk of tire failure.
WARNING - Sealant
- Keep out of reach of children.
- Avoid contact with eyes.
- Do not swallow.
Notes on the safe use of the Tire
Mobility Kit
Park your car at the side of the
road so that you can work with the
Tire Mobility Kit away from moving
traffic.
To be sure your vehicle will not
move, even when you're on fairly
le ...
Using the Tire Mobility Kit
CAUTION
Detach the speed restriction
label (0) from the sealant bottle
(1), and place it in a highly visible
place inside the vehicle
such as on the steering wheel to
remind the driver no ...
