Kia Cee'd: ISG (Idle Stop and Go) system / Condition of ISG system operation
The ISG system will operate under the following condition:
- The driver’s seat belt is fastened.
- The driver’s door and engine hood are
closed.
- The brake vaccum pressure is adequate.
- The battery is sufficiently charged.
- The outside temperature is between
-2°C to 35°C (28.4°F to 95°F).
- The engine coolant temperature is not
too low.
✽ NOTICE

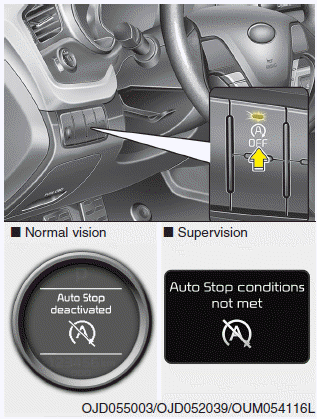

- If the ISG system does not meet the operation condition, the ISG system is deactivated. The light on the ISG OFF button will illuminate and a message “Auto Stop Deactivated” or “ Auto Stop conditions not met” will appear on the LCD display.
- If the light or notice comes on continuously, please check the operation condition.
Auto Start
To restart the engine from idle stop
mode
Press the clutch pedal when the shift
lever is in the N (Neutral) position.
A message "Press Clutch Pedal for Auto
Start" will appear on the L ...
ISG system deactivation
If you wish to deactivate the ISG system,
press the ISG OFF button. The
light on the ISG OFF button will illuminate
and a message “Auto Stop OFF”
will appear on the LCD display.
...
