Kia Cee'd: Cylinder Head Assembly / Cylinder Head Components and components location
Kia Cee'd JD Service Manual / Engine Mechanical System / Cylinder Head Assembly / Cylinder Head Components and components location

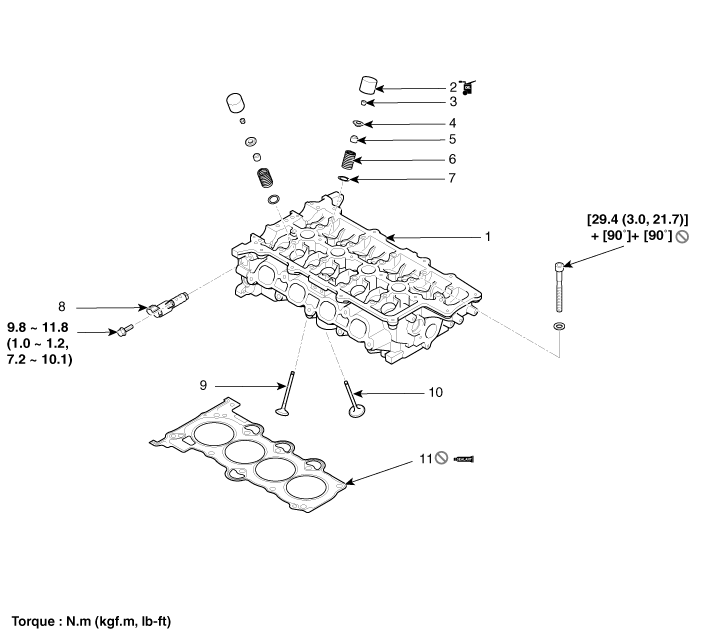

| Components |
| 1. Cylinder head assembly 2. MLA 3. Retainer lock 4. Retainer 5. Valve stem seal 6. Valve spring |
7. Valve spring seat 8. OCV (Oil Control Valve) 9. Exhaust valve 10. Intake valve 11. Cylinder head gasket |
