Kia Cee'd: Charging System / DC DC Converter Schematic diagrams
Kia Cee'd JD Service Manual / Engine Electrical System / Charging System / DC DC Converter Schematic diagrams

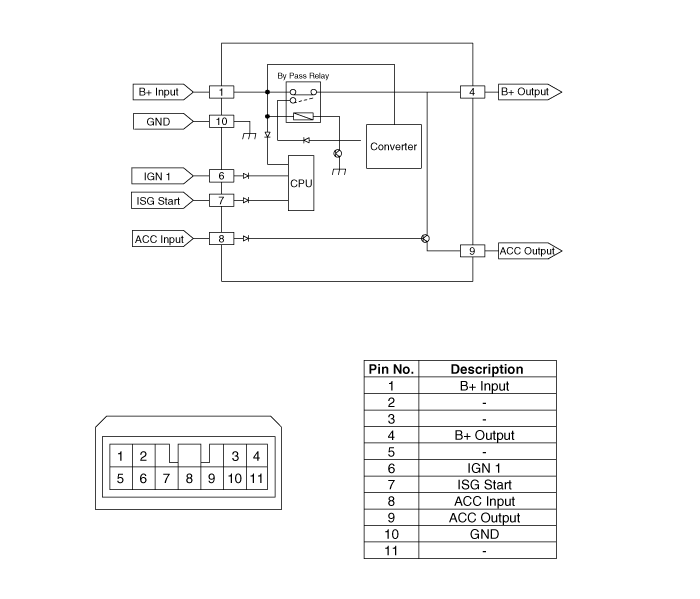

| Circuit Diagram |
DC DC Converter Components and components location
Component Location
1. DC/DC converter (LHD)
2. DC/DC converter (RHD)
...
DC DC Converter Repair procedures
Removal
1.
Disconnect the battery negative terminal.
2.
Remove the glove box housing.
(Refer to Body - "Glove Box Housing&quo ...
