Kia Cee'd: Interior Trim / Door Scuff Trim Components and components location
Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Interior Trim / Door Scuff Trim Components and components location
| Component Location |

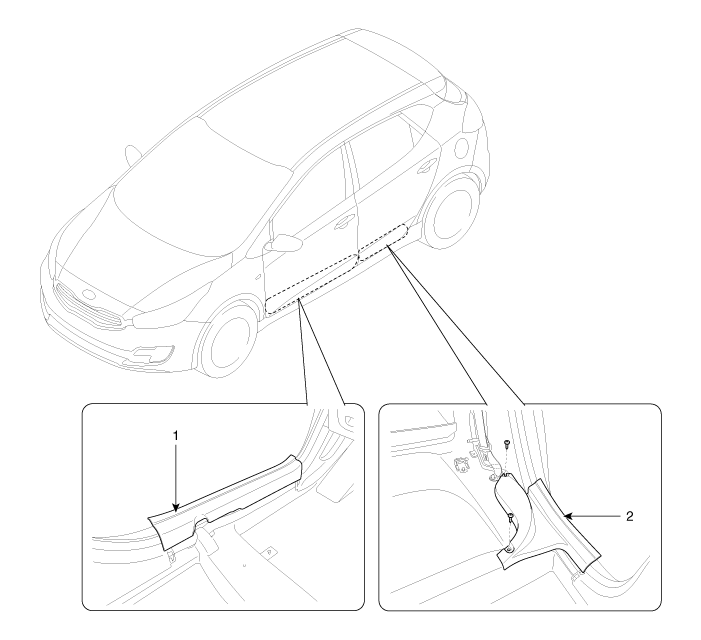

| [5Door] |
| 1. Front door scuff trim |
2. Rear door scuff trim |

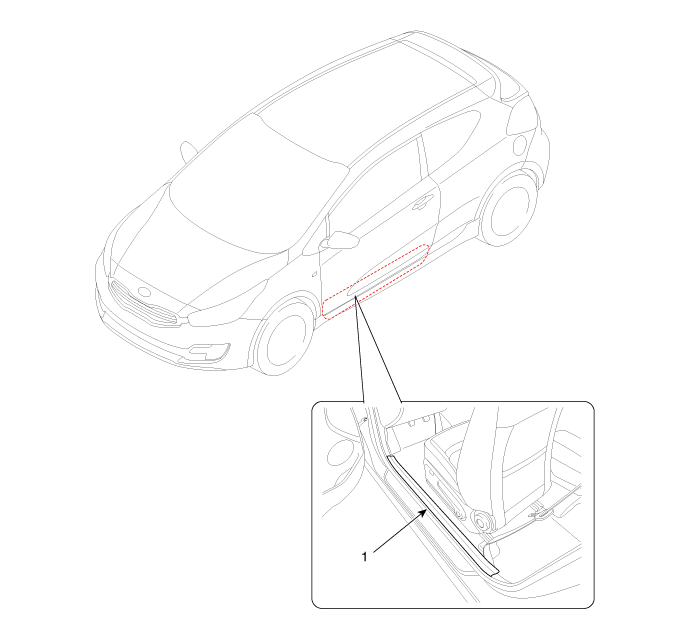

| [3Door] |
| 1. Front door scuff trim |
