Kia Cee'd: Dual Clutch Transmission Assembly / Dual Clutch Transmission(DCT) Components and components location
Kia Cee'd JD Service Manual / Dual Clutch Transmission(DCT) System / Dual Clutch Transmission Assembly / Dual Clutch Transmission(DCT) Components and components location

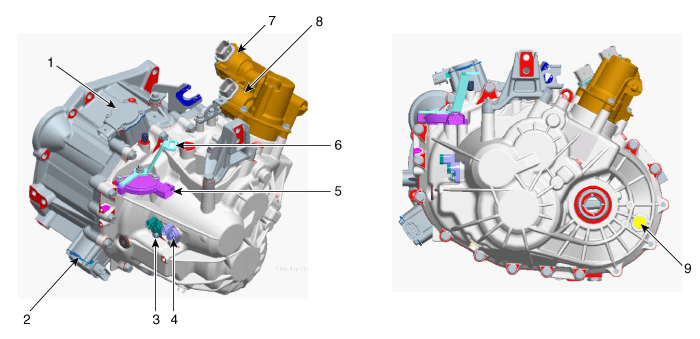

| Components |
| 1. Odd clutch actuator motor
2. Even clutch actuator motor 3. Input shaft speed sensor 2 4. Intput shaft speed sensor 1 5. Inhibitor switch |
6. Manual control lever 7. Shift motor 8. Select motor 9. Filler plug |

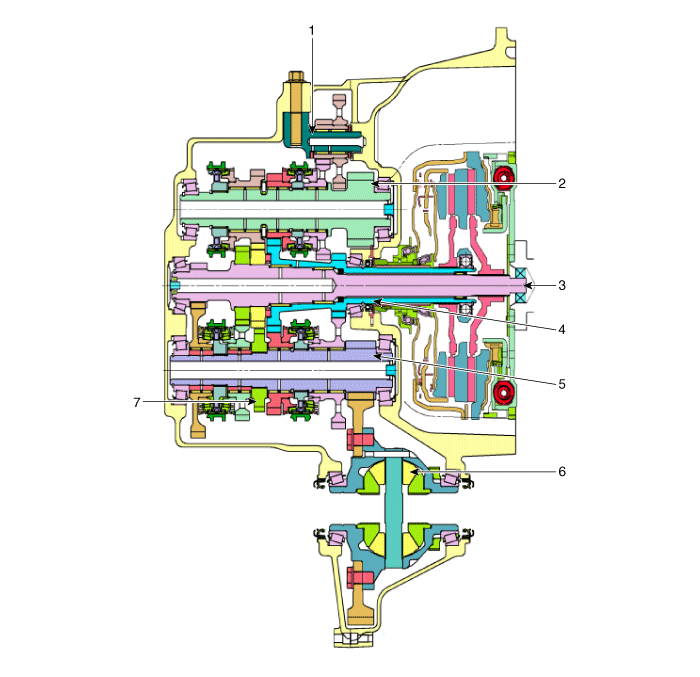

| Cross Sectional Drawing |
| 1. Reverse Idler shaft 2. 5/6/R output shaft 3. 1/3/5 input shaft 4. 2/4/6/R input shaft |
5. 1/2/3/4 output shaft 6. Differential assembly 7. Parking gear |
Dual Clutch Transmission(DCT) Repair procedures
Removal
1.
Remove the engine cover.
(Refer to Engine Mechanical System - "Engine cover")
2.
Remove the air cleaner as ...
