Description

Introduction of quick brake warning system (ESS)

In case of sudden braking by the driver, the brake lamp and/or turn signal flash to warn the vehicle behind.

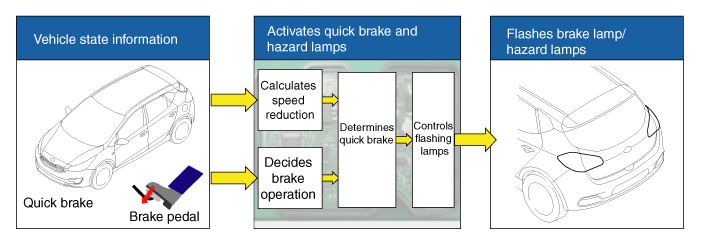

Basic function (Blinking the brake lamp/emergency lamp)

–	Operation condition: In case of quick brake or operation of ABS above in a certain speed

–	Releasing condition: In case of stopping the quick brake or releasing the ABS operation

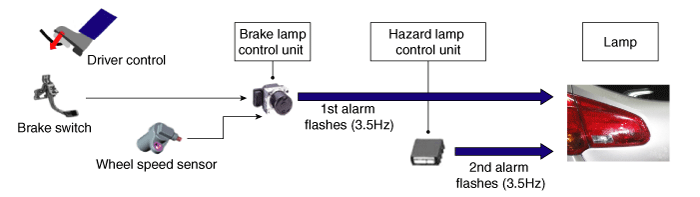

Additional function (Blinking the turn signal)

–	Operation condition: In case of quick brake in low speed

–	Releasing condition: Releasing at the start of driving

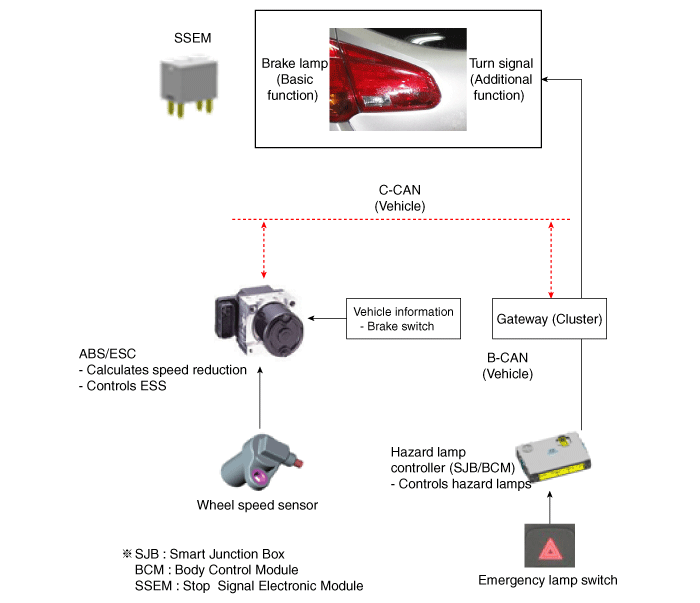

System configuration

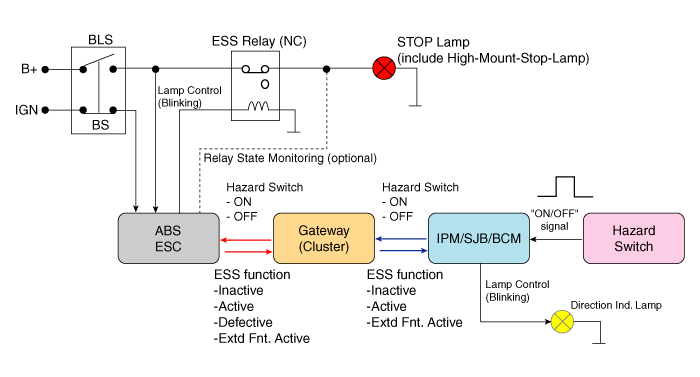

ESS Circuit diagram
