Kia Cee'd: Fuse/relay panel description / Engine compartment fuse panel (for diesel engine)
✽ NOTICE
The actual fuse/relay panel label may differ from equipped items.

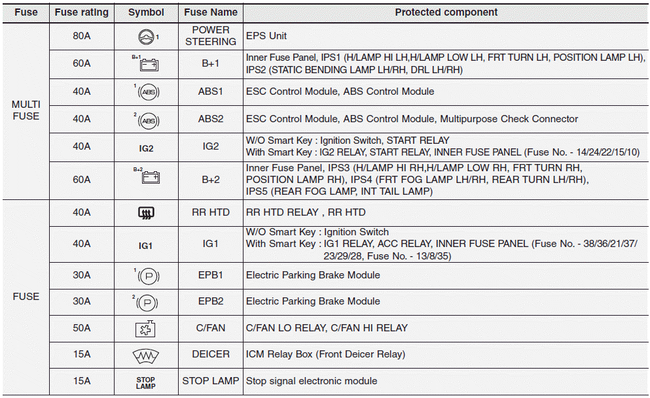

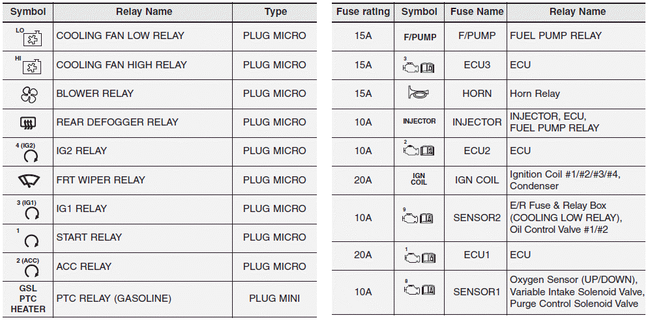

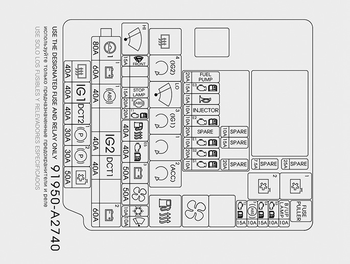

Engine compartment main fuse panel (for gasoline engine MPI, GDI)

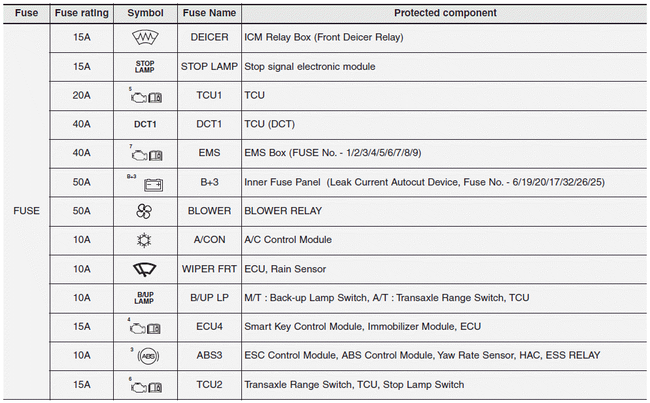

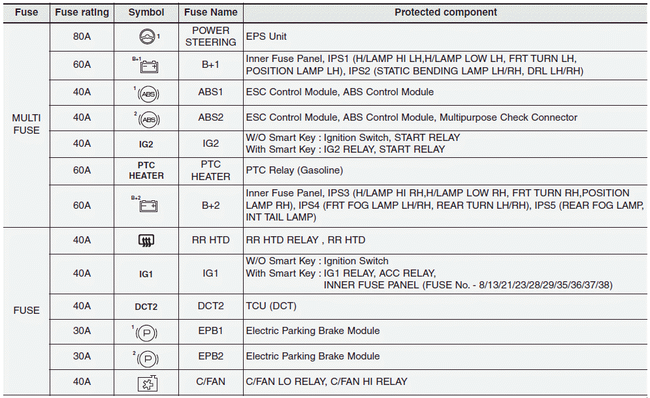

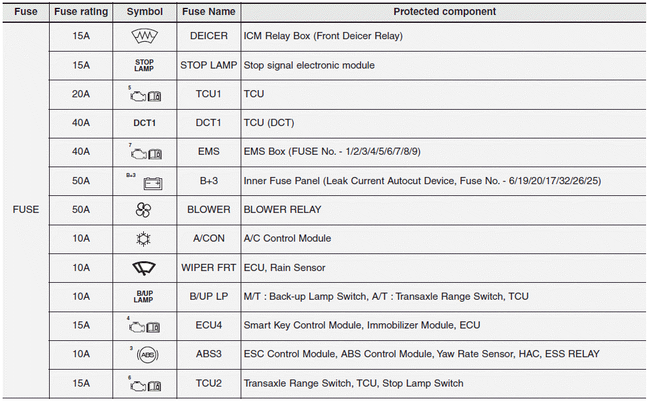

Engine compartment main fuse panel (for gasoline engine T-GDI)

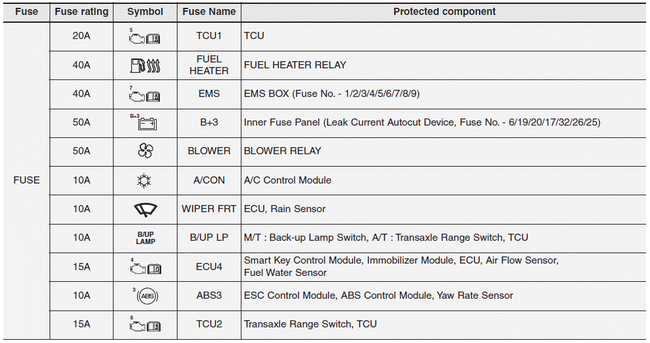

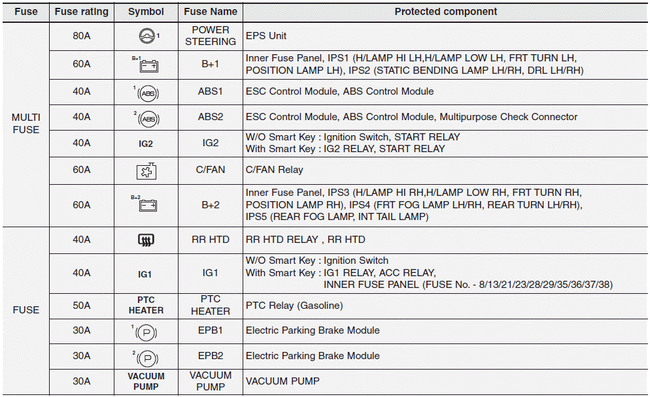

Engine compartment main fuse panel (for diesel engine)

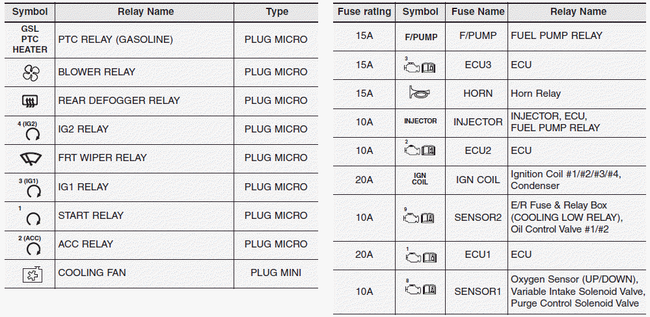

Engine compartment fuse panel
(for gasoline engine T-GDI)
✽ NOTICE
The actual fuse/relay panel label may
differ from equipped items.
...

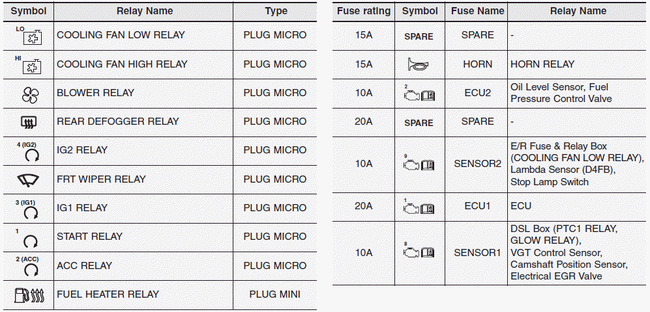

Engine compartment fuse panel
(Diesel engine only)
✽ NOTICE
The actual fuse/relay panel label may
differ from equipped items.
...
