Kia Cee'd: Floor Console / Floor Console Assembly Repair procedures

Replacement

[M/T]

•	When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Put on gloves to protect your hands.

•	Take care not to scratch the body surface.

1.	Disconnect the gear boots (A).

2.	Using a screwdriver or remover, remove the console garnish (A). [LH] [RH]

3.	Using a screwdriver or remover, remove the console upper cover (A).

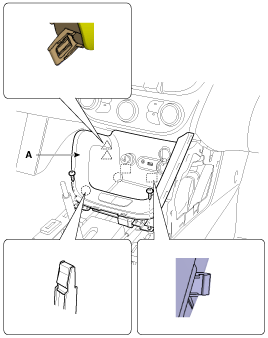

4.	After loosening the mounting screws, then remove the console tray (A).

5.	Disconnect the connectors (A).

6.	Remove the console tray mat (A).

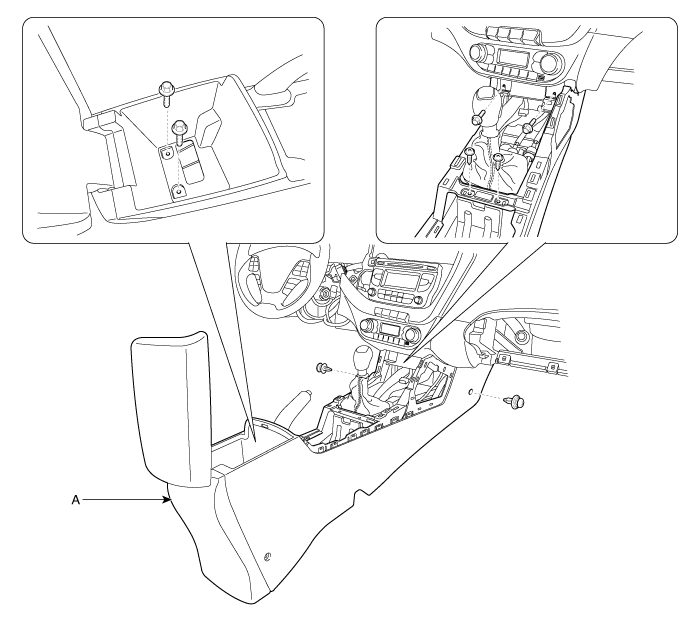

7.	After loosening the mounting screws, bolts, clips, then remove the floor console assembly (A).

Install in the reverse order of removal.

•	Make sure the connector are connected in properly.

•	Replace any damage clips.

[A/T]

•	When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Put on gloves to protect your hands.

•	Take care not to scratch the body surface.

1.	Remove the gear boots (B) and gear knob (A).

2.	Using a screwdriver or remover, remove the console garnish (A). [LH] [RH]

3.	Using a screwdriver or remover, remove the console upper cover (A).

4.	Disconnect the indicator connector (A).

5.	Disconnect the EPB switch connector (A).

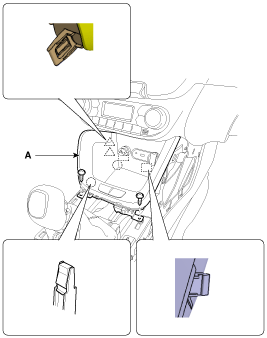

6.	After loosening the mounting screws, then remove the console tray (A).

7.	Disconnect the connectors (A).

8.	Remove the console tray mat (A).

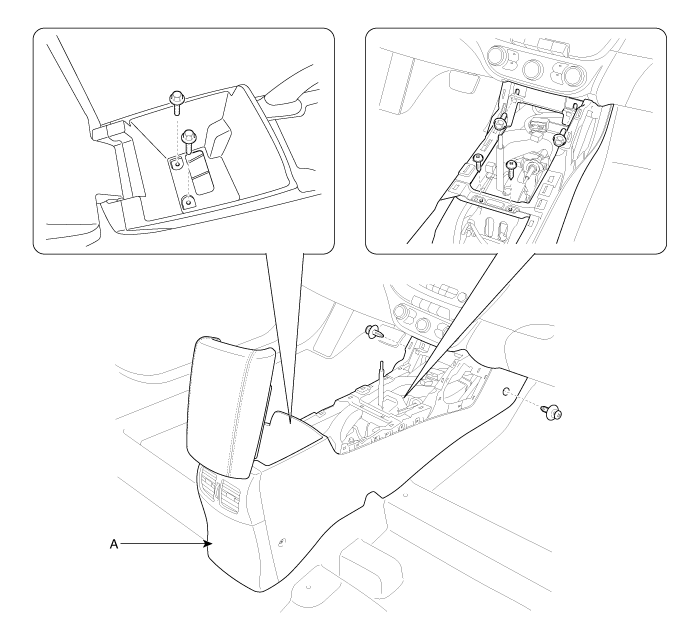

9.	After loosening the mounting screws, bolts, clips, then remove the floor console assembly (A).

10.

Install in the reverse order of removal.

•	Make sure the connector are connected in properly.

•	Replace any damage clips.
