Kia Cee'd: Engine Control System / Fuel Pressure Control Valve Schematic diagrams
Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Fuel Pressure Control Valve Schematic diagrams

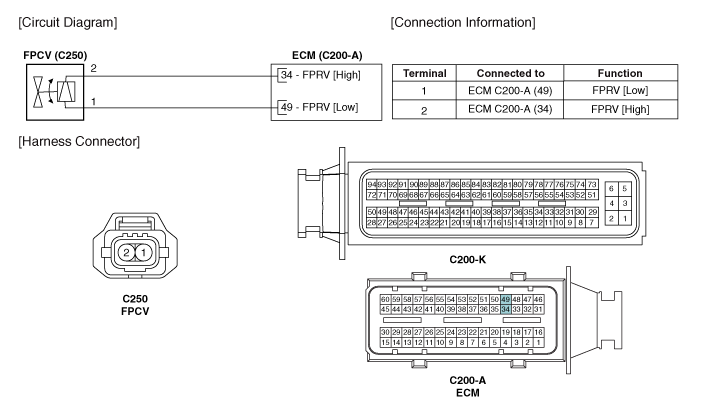

| Circuit Diagram |
Fuel Pressure Control Valve Troubleshooting
Signal Waveform
...
Fuel Pressure Control Valve Repair procedures
Inspection
1.
Turn the ignition switch OFF and disconnect the battery negative (-)
cable.
2.
Disconnect the fuel pressure regulator ...
