Kia Cee'd: Fuses / Fuse switch

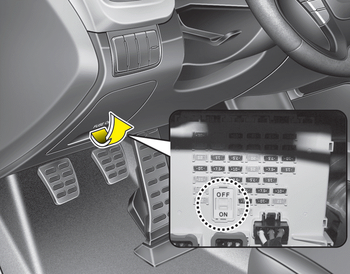

Always, put the fuse switch at the ON position.
If you move the switch to the OFF position, some items such as audio and digital clock must be reset and transmitter (or smart key) may not work properly. When the fuse switch is in the OFF position, a message "Turn on fuse switch" will illuminate on the cluster.
CAUTION
- Always place the fuse switch in the ON position while driving the vehicle.
- Do not move the fuse switch repeatedly. The fuse switch may be worn out.
✽ NOTICE
If you need to park your vehicle for prolonged periods more than 1 month, move the fuse switch to the OFF position to prevent the battery being discharged.
Inner panel fuse replacement
1. Turn the ignition switch and all other
switches off.
2. Open the fuse panel cover.
3. Pull the suspected fuse straight out.
Use the removal tool provided in the
engine compartment fuse ...
Engine compartment panel fuse
replacement
Diesel only
1. Turn the ignition switch and all other
switches off.
2. Remove the fuse box cover by pressing
the tap and pulling up. When the
blade type fuse is disconnected,
remove it b ...
