Kia Cee'd: Hands Free System / Hands Free Switch Schematic diagrams
Kia Cee'd JD Service Manual / Body Electrical System / Hands Free System / Hands Free Switch Schematic diagrams

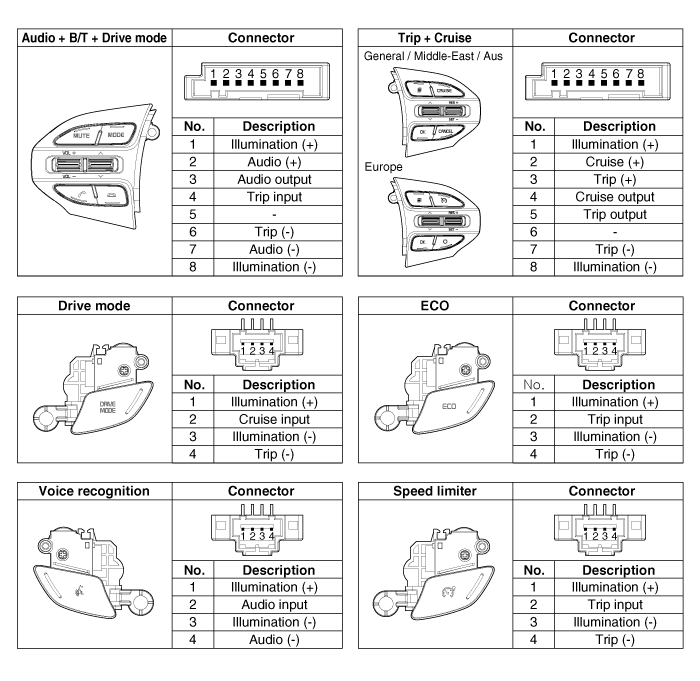

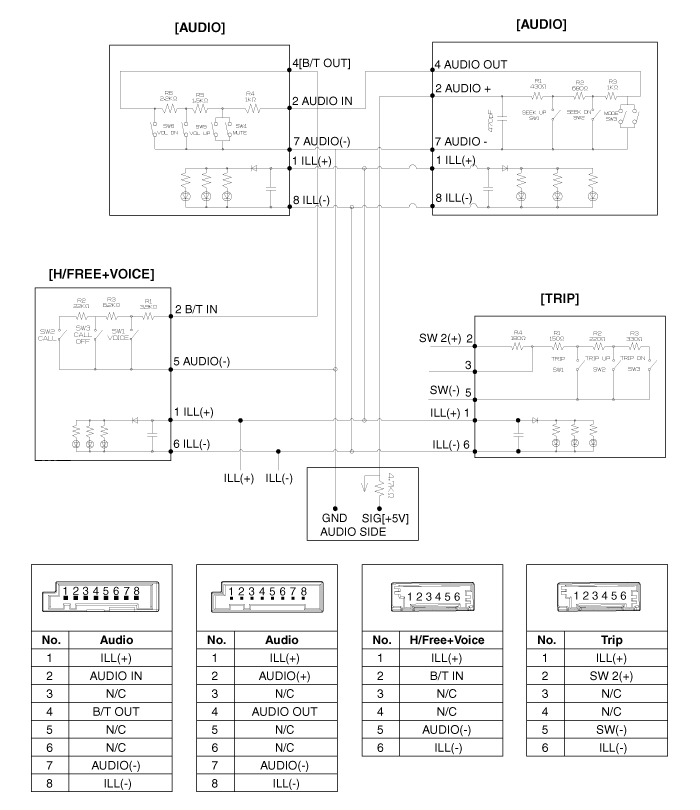

| Circuit Diagram |

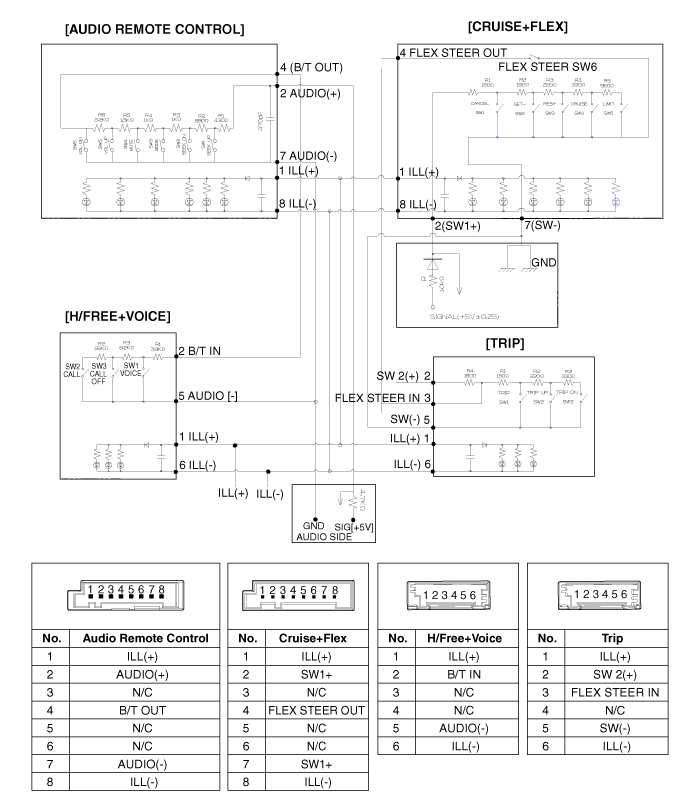

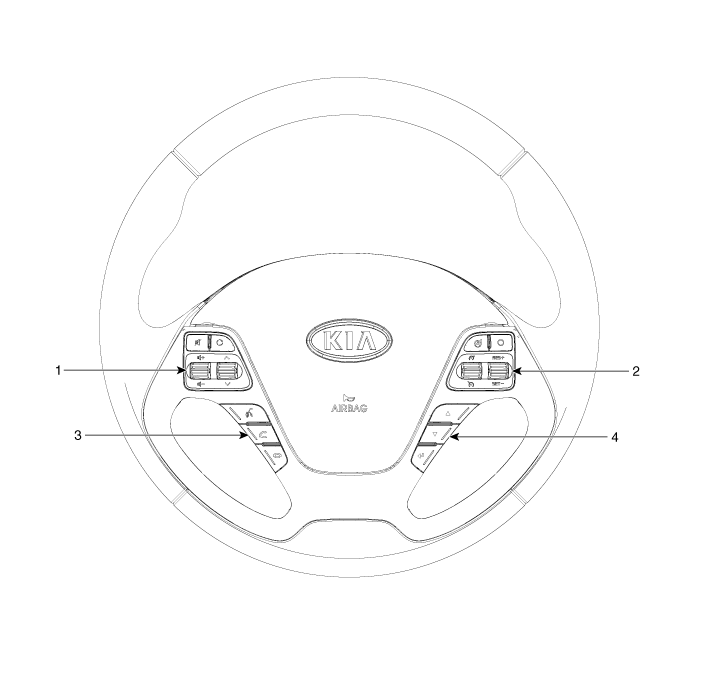

| Type A |
| 1. Remote control switch(LH:
Audio) 2. Remote control switch(RH: Cruise+Flex) |
3. Bluetooth hands free switch
4. Trip switch |

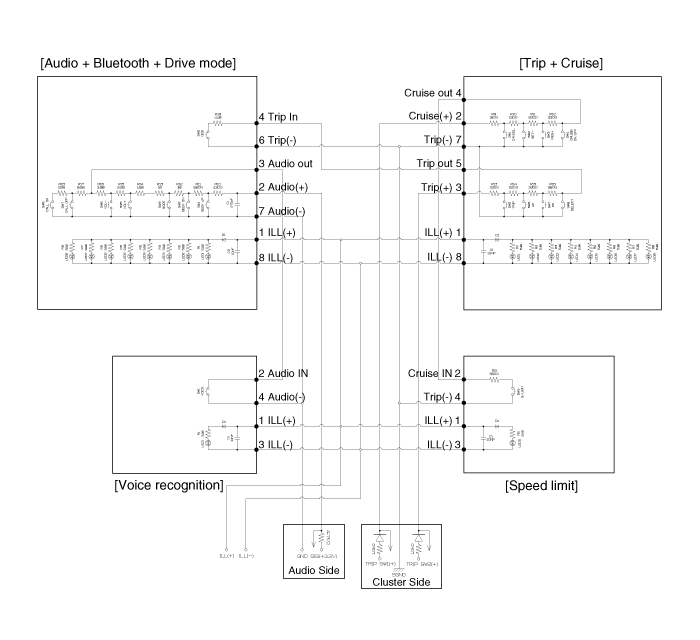

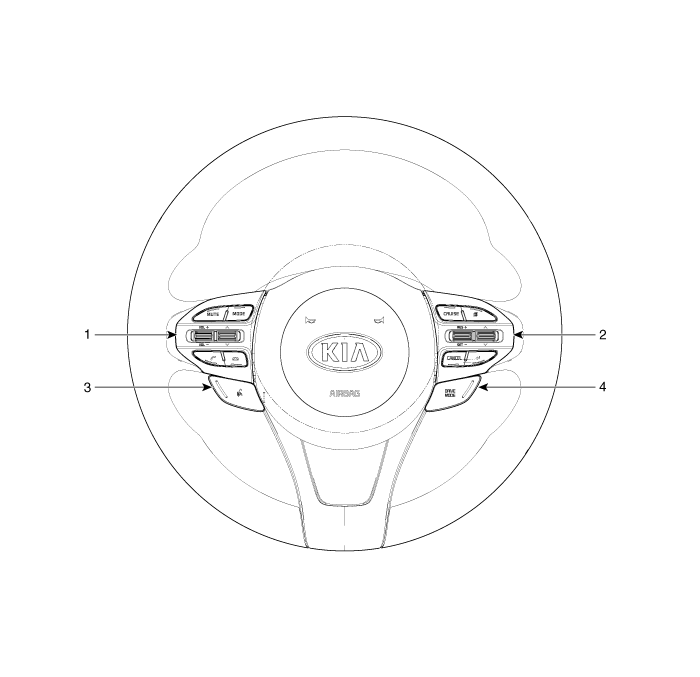

| Type B |
| 1. Audio & Drive mode swith
2. Trip & Cruise control switch |
3. Voice recognition switch
4. Speed limit switch |
Troubleshooting
Troubleshooting
Problem
Possible cause
Solution
Not pairing
Bluetooth device of Car is not discoverable mode
...
Hands Free Switch Repair procedures
Inspection
Type A
1.
Check the audio remote control switch (A) for resistance between connector
3 and 4 in each switch position.
[Au ...
