Kia Cee'd: Engine Control System / Heated Oxygen Sensor (HO2S) Troubleshooting
Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Heated Oxygen Sensor (HO2S) Troubleshooting

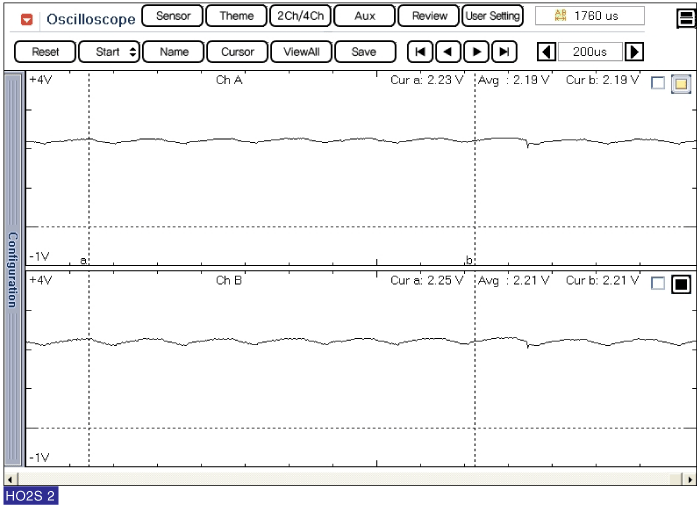

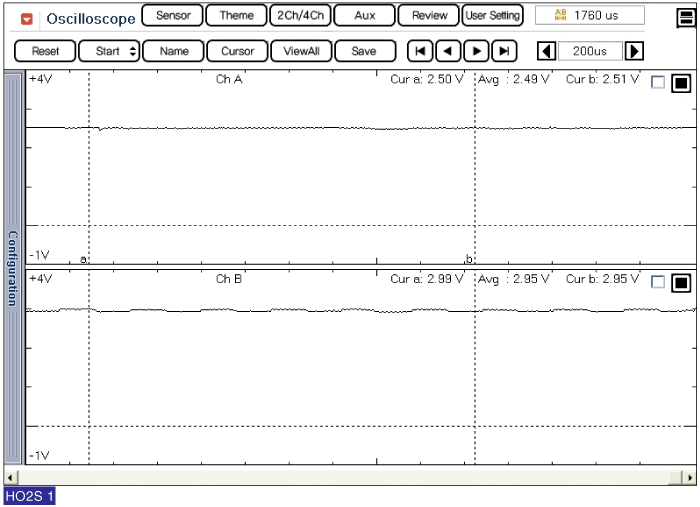

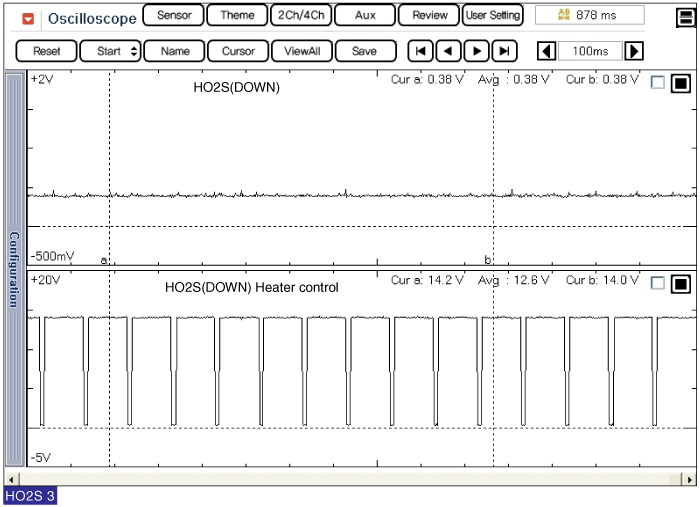

| Signal Waveform |
Heated Oxygen Sensor (HO2S) Specifications
Specification
HO2S [Bank 1/Sensor 1]
Item
Specification
Heater Resistance (Ω)
2.4 ~ 4.0 [20°C(68°F)]
...
Heated Oxygen Sensor (HO2S) Schematic diagrams
Circuit Diagram
...
