Kia Cee'd: Windshield Wiper/Washer / Heated Washer Nozzle Repair procedures
Kia Cee'd JD Service Manual / Body Electrical System / Windshield Wiper/Washer / Heated Washer Nozzle Repair procedures
| Removal |
| 1. |
Remove the cowl top cover.
(Refer to the BD group - "Cowl Top Cover")
|
| 2. |

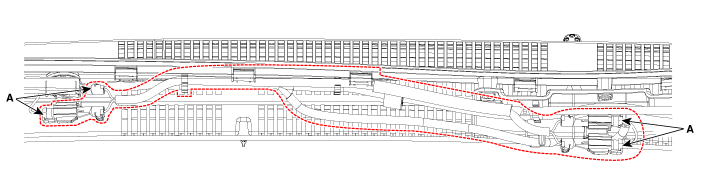

Disconnect the heated washer nozzle connectors (A).
|
| 3. |

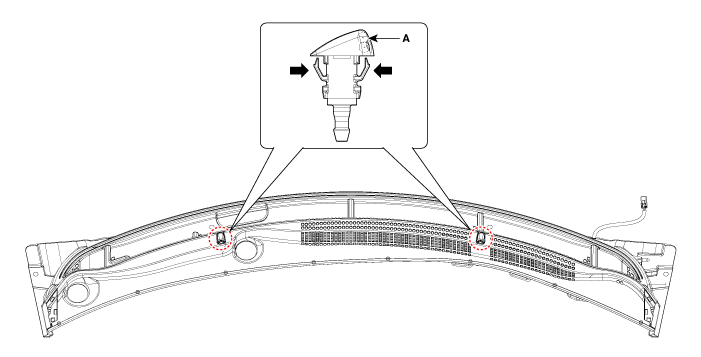

Remove the heated washer nozzle (A) after releasing the fixed hooks.
|
| Installation |
| 1. |
Install the heated washer nozzle.
|
| 2. |
Connect the heated washer nozzle connectors.
|
| 3. |
Install the cowl top cover.
|
Heated Washer Nozzle Components and components location
Component
...
