Replacement

•	When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Put on gloves to protect your hands.

1.	Disconnect the negative (-) battery terminal.

2.	Remove the gear boots (B) and gear knob (A).

3.	Using a screwdriver or remover, remove the console garnish (A). [LH] [RH]

4.	Using a screwdriver or remover, remove the console upper cover (A).

5.	Disconnect the indicator connector (A).

6.	Disconnect the EPB switch connector (A).

7.	After loosening the mounting screws, then remove the console tray (A).

8.	Disconnect the connectors (A).

9.	Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel")

10.	Remove the glove box housing. (Refer to Body - "Glove Box Housing")

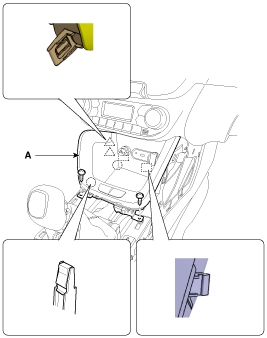

11.	After loosening the mounting screws, then remove the crash pad center lower panel (A).

12.	Disconnect the heater control unit connectors (A) and hose (B).

13.	Remove the heater A/C controller (A) from the lower center facia panel (B) after loosening the mounting screws.

14.

Install in the reverse of removal.

•	Make sure the connector are connected in properly.

•	Replace any damaged clips.
