Kia Cee'd: Timing System / Idler Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Timing System / Idler Components and components location

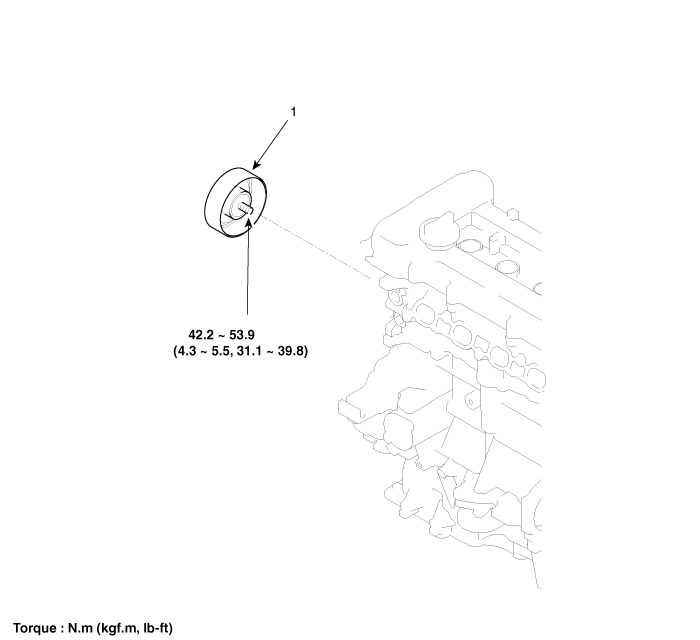

Components


1. Idler

Drive Belt Repair procedures
Removal 1. Disconnect the battery negative terminal. 2. Loosen the alternator tension adjusting bolt (A) to loosen tension. ...
Idler Repair procedures
Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Dreve Belt") 2. Remove the idler (A). ...
