Kia Cee'd: IMS (Integrated Memory) / IMS Control Switch Schematic diagrams
Kia Cee'd JD Service Manual / Body Electrical System / IMS (Integrated Memory) / IMS Control Switch Schematic diagrams

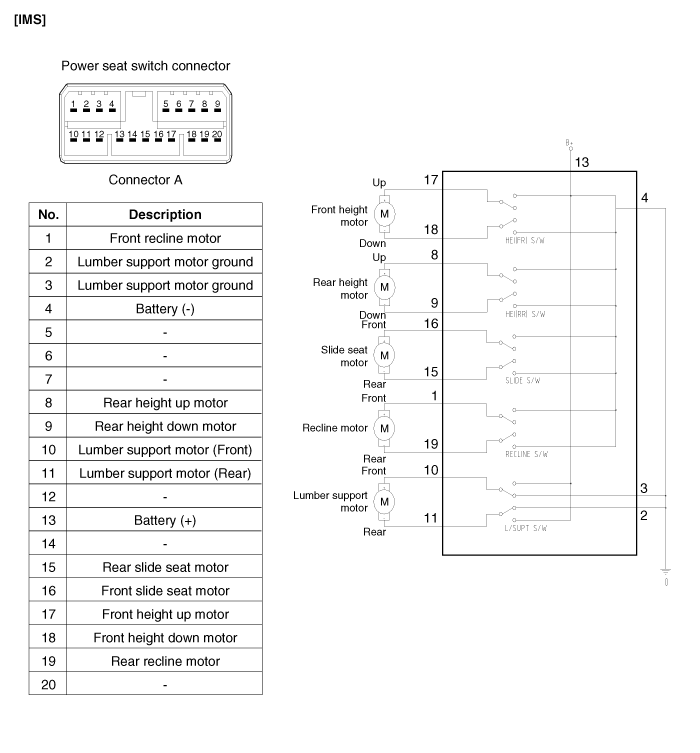

| Circuit diagram |
IMS Power Seat Control Repair procedures
Inspection
1.
Disconnect the IMS control switch connector.
2.
With the power IMS control switch in each position, make sure that ...
IMS Control Switch Repair procedures
Inspection
1.
Remove the IMS control switch connector (A).
2.
With the IMS control switch in each position, make sure that conti ...
