Kia Cee'd: Engine Control System / Intake Air Temperature Sensor (IATS) Schematic diagrams
Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Intake Air Temperature Sensor (IATS) Schematic diagrams

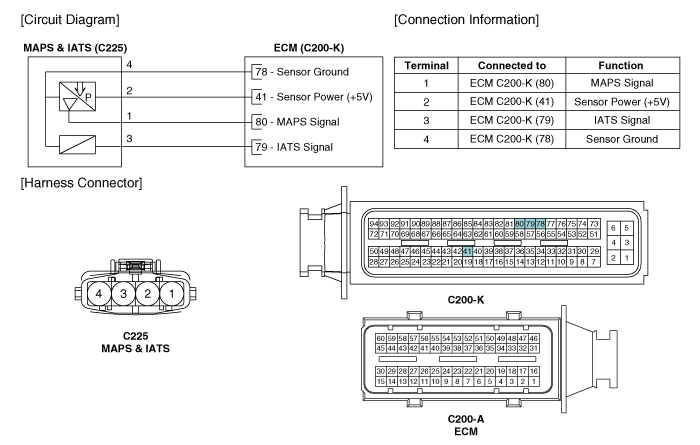

| Circuit Diagram |
Intake Air Temperature Sensor (IATS) Specifications
Specification
Temperature
Resistance (kΩ)
°C
°F
-40
-40
40.93 ~ 48.35
...
Intake Air Temperature Sensor (IATS) Repair procedures
Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the IATS connector.
3.
Measure resistance betwe ...
