Kia Cee'd: Engine Control System / ISG (Idle Stop & Go) Components and components location
Kia Cee'd JD Service Manual / Fuel System / Engine Control System / ISG (Idle Stop & Go) Components and components location

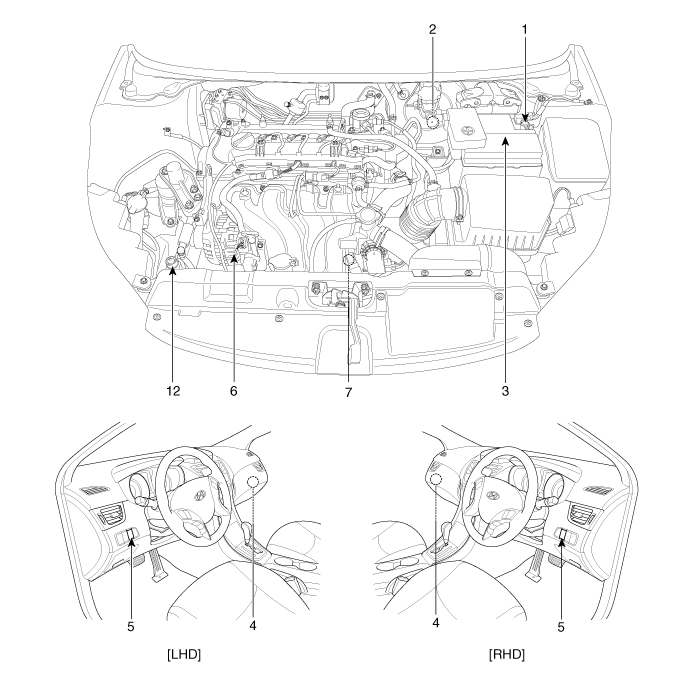

| Components Location |
| 1 . Battery sensor 2 . Brake Booster Vacuum Pressure Sensor (BBVPS) 3 . AGM battery 4 . DC DC converter 5 . ISG OFF switch 6. Alternator |
7 . Starter 8. Neutral switch 9. Clutch switch 10. Door switch 11. Seat belt switch 12. Hood switch |
|
1 . Battery sensor 3 . AGM battery |
2 . Brake Booster Vacuum Pressure Sensor (BBVPS) |
|
|
|
|
4 . DC DC converter |
5 . ISG OFF switch |
|
|
|
|
6. Alternator |
7 . Starter |
|
|
|
|
8. Neutral switch |
9. Clutch switch |
|
|
|
|
10. Door switch |
11. Seat belt switch |
|
|
|
|
12. Hood switch |
|
|
|
