Kia Cee'd: Engine Control System / Knock Sensor (KS) Schematic diagrams
Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Knock Sensor (KS) Schematic diagrams

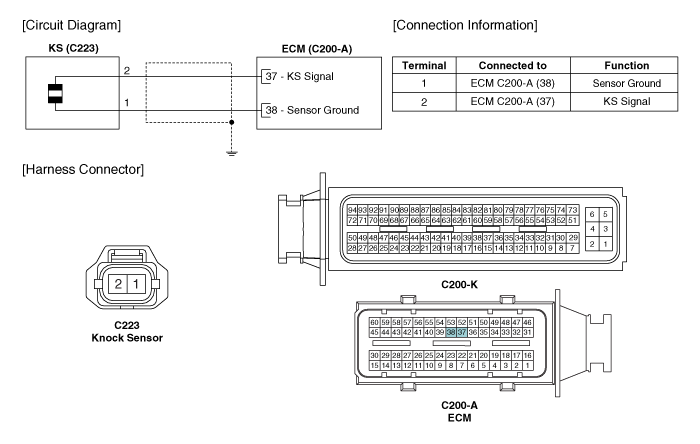

| Circuit Diagram |
Knock Sensor (KS) Specifications
Specification
Item
Specification
Capacitance (pF)
950 ~ 1,350
Resistance (MΩ)
4.87
...
Knock Sensor (KS) Repair procedures
Removal
1.
Turn the ignition switch OFF and disconnect the battery negative (-)
cable.
2.
Remove the intake manifold.
(Re ...
