Kia Cee'd: Driving your vehicle / Lane departure warning system (LDWS)

Kia Cee'd JD Owners Manual / Driving your vehicle / Lane departure warning system (LDWS)

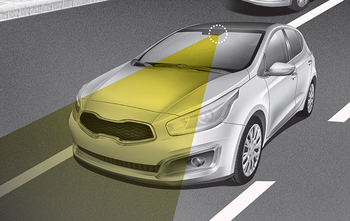

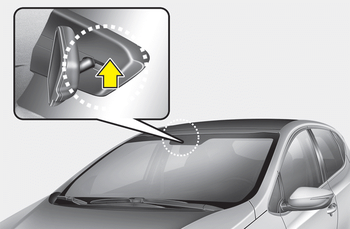

This system detects the lane with the sensor at the front windshield and warns you when your vehicle leaves the lane.

WARNING

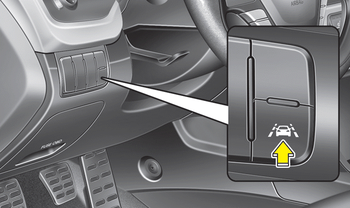

To operate the LDWS, press the switch with the ignition in the ON position. The indicator illuminates on the cluster. To cancel the LDWS, press the switch again.

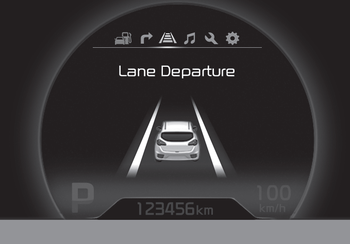

• When the sensor detects the lane line

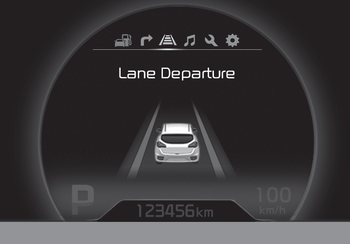

• When the sensor doesn’t detect the lane line

If your vehicle leaves the lane when the LDWS is operating and vehicle speed exceeds 60km/h, the warning operates as follows:

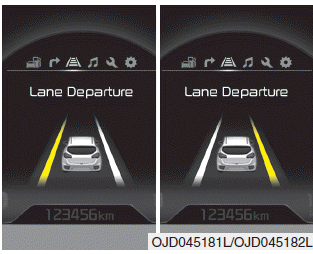

1. Visual warning

If you leave the lane, the lane you leave on the LCD display blinks yellow with 0.8 second of interval.

2. Auditory warning

If you leave the lane, the warning sound operates with 0.8 second of interval.

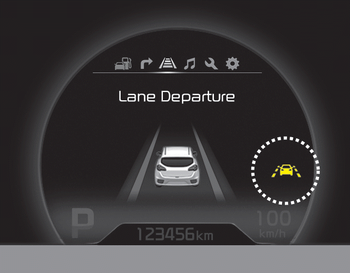

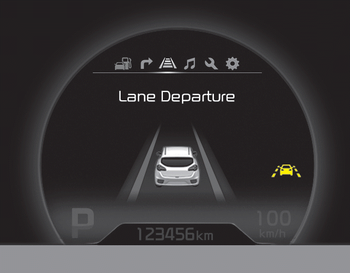

If you change the display mode of trip computer while the LDWS is ON, the symbol of the LDWS will display like a picture.

The color of symbol will change depend on the condition of LDWS system.

- White color : It means the sensor does not detect the lane line.
- Green color : It means the sensor detects the lane line.
