Kia Cee'd: Manual Transaxle System / Manual Transaxle Components and components location
Kia Cee'd JD Service Manual / Manual Transaxle System / Manual Transaxle System / Manual Transaxle Components and components location

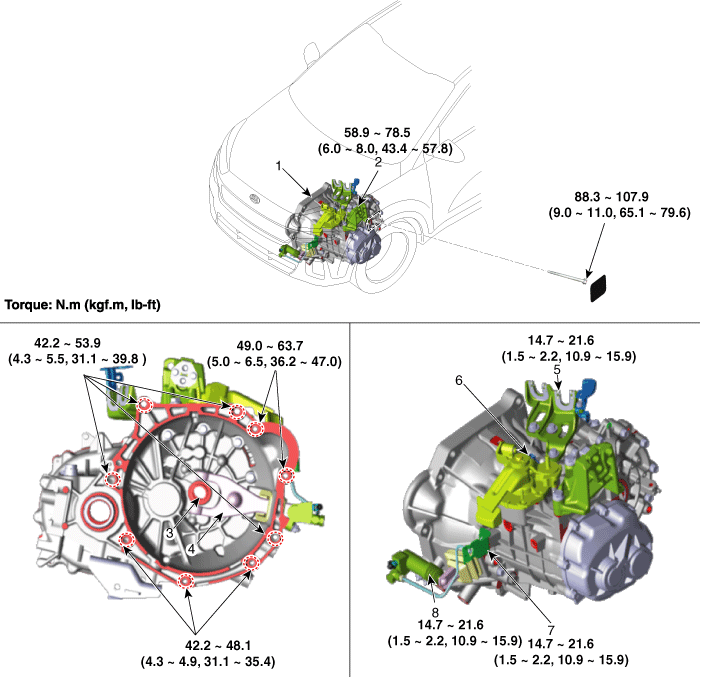

| Components |
|
1. Manual transaxle assembly 2. Manual transaxle support bracket 3. Clutch release bearing 4. Clutch release fork 5. Control cable bracket |
6. Control shaft complete 7. Clutch tube bracket 8. Clutch release cylinder assembly |
