Kia Cee'd: Lubrication System / Oil Pump Components and components location
Kia Cee'd JD Service Manual / Engine Mechanical System / Lubrication System / Oil Pump Components and components location

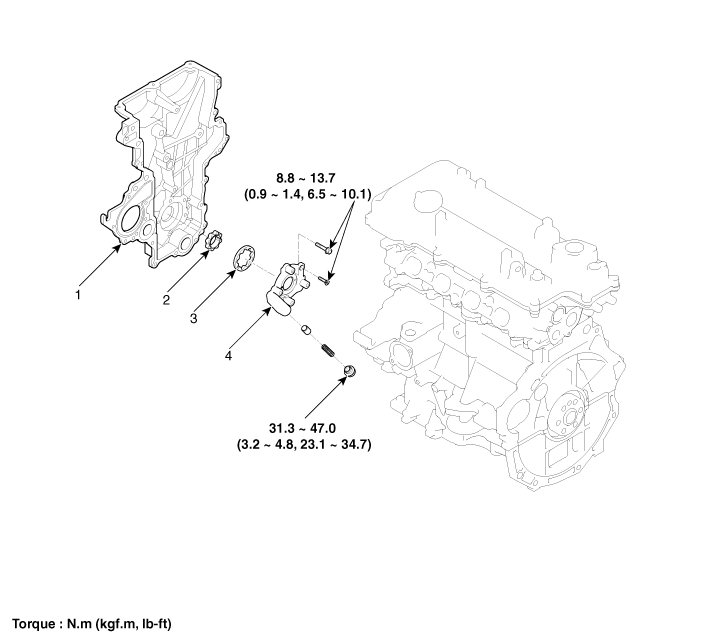

| Components |
| 1.
Timing chain cover 2. Inner rotor |
3.
Outer rotor 4. Pump cover |
