Kia Cee'd: RCTA (Rear cross traffic alert) / Operating conditions

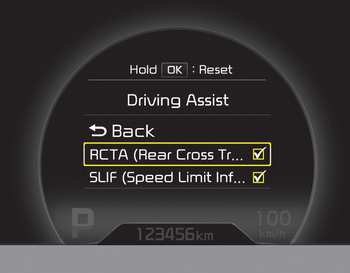

- Select RCTA (Rear Cross Traffic Alert) in "User Settings" under "Driving Assist" on the instrument cluster. The system will turn on and stand by to be activated.
- Select RCTA again, to turn the system off.
- If the vehicle is turned off and on again, the RCTA system will return to the state right before the vehicle was turned off. Turn the RCTA system off when not in use.
- The system is operated when the vehicle speed is below 10km/h (6.2mph) with the shift lever in R (Reverse).
✽ NOTICE
The Rear Cross Traffic Alert (RCTA) detecting range is approximately 0.5 m ~ 20 m (1 ft ~ 65 ft). An approaching vehicle will be detected if their vehicle speed is within 4 km/h ~ 36 km/h (2.5 ~ 22.5 mph ).
Note that the detecting range may vary under certain conditions. As always, use caution and pay close attention to your surroundings when backing up your vehicle.
RCTA (Rear cross traffic alert)
The Rear Cross Traffic Alert feature monitors
approaching cross traffic from the
left and right side of the vehicle when
your vehicle is in reverse. ...
Warning type
If the vehicle detected by the sensors
approaches your vehicle, the warning
chime will sound, the warning light on
the outside rearview mirror will blink.
If the detected vehicle is ou ...
