Kia Cee'd: Features of your vehicle / Parking assist system

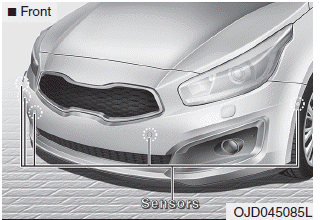

■ Front

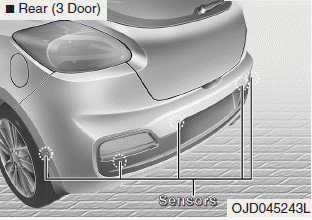

■ Rear (3 Door)

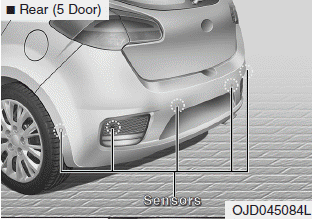

■ Rear (5 Door)

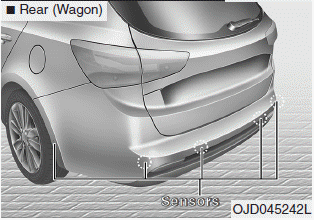

■ Rear (Wagon)
The parking assist system assists the driver during movement of the vehicle by chiming or displaying the area an obstacle is detected on the instrument cluster if any object is sensed within the distance of 100 cm (39.4 in.) in front and 120 cm (47 in.) behind the vehicle.
This system is a supplemental system and it is not intended to nor does it replace the need for extreme care and attention of the driver.
The sensing range and objects detectable by the sensors are limited.
Whenever moving pay as much attention to what is in front and behind of you as you would in a vehicle without a parking assist system.
WARNING
The parking assist system should only be considered as a supplementary function. The driver must check the front and rear view. The operational function of the parking assist system can be affected by many factors and conditions of the surroundings, so the responsibility rests always with the driver.
- Operation of the parking assist system
- Non-operational conditions of parking assist system
- Self-diagnosis
Self-diagnosis
When you shift the gear to the R
(Reverse) position and if one or more of
the below occurs you may have a malfunction
in the rear parking assist system.
You don't hear an audible warning
...
