Kia Cee'd: Driver's and passenger's front air bag / Passenger’s front air bag ON/OFF switch

The passenger’s front air bag can be deactivated by the passenger’s front air bag ON/OFF switch if a child restraint is installed on the front passenger's seat or if the front passenger's seat is unoccupied by a person.

To ensure the safety of your child, the passenger’s front air bag must be deactivated when it should be necessary to install a rearward facing child seat on the front passenger seat in exceptional circumstances.

To deactivate or reactivate the passenger’s front air bag:

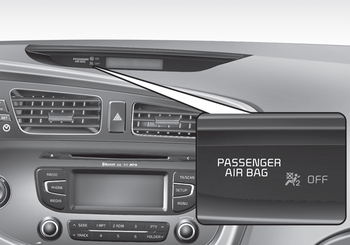

To deactivate the passenger’s front air bag, insert the mechanical key into the passenger’s front air bag ON/OFF switch and turn it to the OFF position.

The passenger’s front air bag OFF indicator () will illuminate and stay on until the passenger’s front air bag is reactivated.

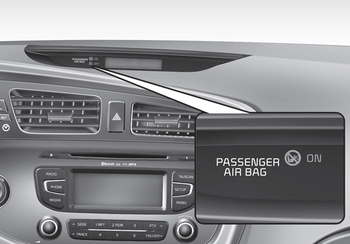

To reactivate the passenger’s front air bag, insert the mechanical key into the passenger’s front air bag ON/OFF switch and turn it to the ON position. The passenger’s front air bag OFF indicator will go out and the passenger’s front air bag ON indicator () will illuminate for approximately 60 seconds.

WARNING

On some models, the front air bag ON/OFF switch could turn by using a similar small rigid device. Always check the status of the front air bag ON/OFF switch and passenger's front air bag ON/OFF indicator.

✽ NOTICE

CAUTION

WARNING

WARNING - No attaching objects

No objects (such as crash pad cover, cellular phone holder, cup holder, perfume or stickers) should be placed over or near the air bag modules on the steering wheel, instrument panel, windshield glass, and the front passenger's panel above the glove box. Such objects could cause harm if the vehicle is in a crash severe enough to cause the air bags to deploy. Do not place any objects over the air bag or between the air bag and yourself.
