Kia Cee'd: Power Windows / Power Window Motor Schematic diagrams
Kia Cee'd JD Service Manual / Body Electrical System / Power Windows / Power Window Motor Schematic diagrams

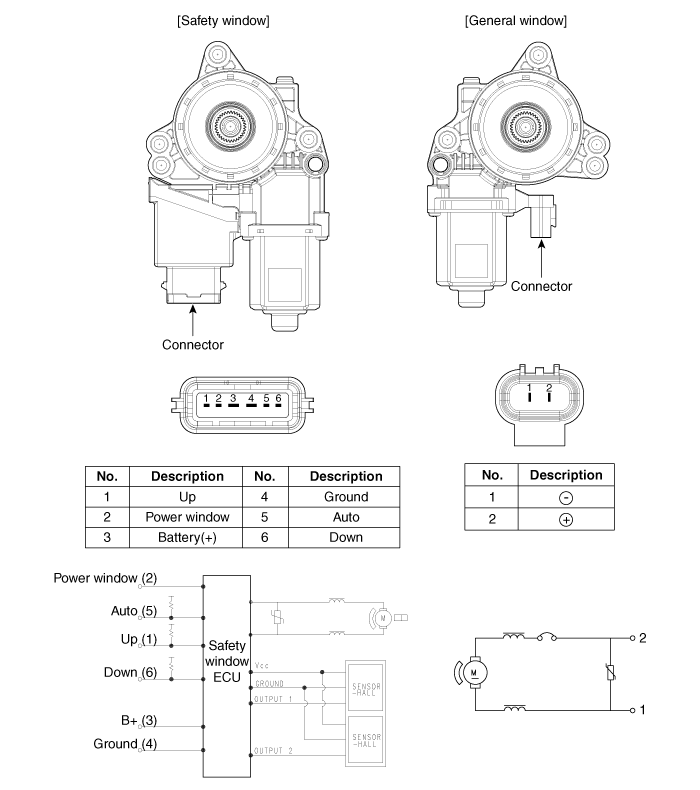

| Circuit Diagram |
Description and operation
Function Of Safety Power
Window
When driver door power window auto-up switch is operated, safety function is
activated.
1.
Safety function condition
...
Power Window Motor Repair procedures
Inspection
Front Power Window Motor Inspection
1.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
2.
...
