Kia Cee'd: Rear Glass Defogger / Rear Glass Defogger Switch Repair procedures
Kia Cee'd JD Service Manual / Body Electrical System / Rear Glass Defogger / Rear Glass Defogger Switch Repair procedures
| Inspection |
| 1. |
The rear glass defogger switch inputs can be checked using the GDS.
|
| 2. |
To check the input value of rear glass defogger switch, select option
"Body Control Module".
|
| 3. |

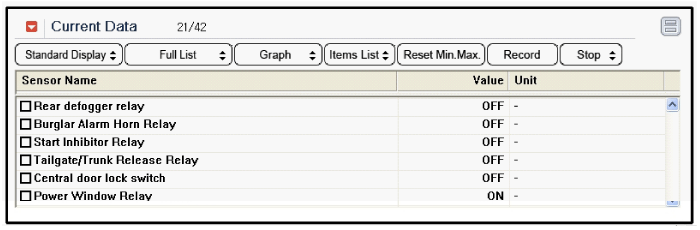

To consult the present input/output value of BCM, "Current DATA". It
provides information of BCM input/output conditions of smart junction
box.
|
| 4. |

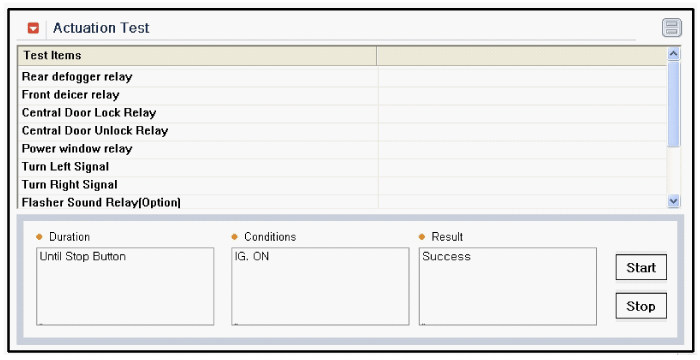

To check the input value of rear glass defogger switch in force mode,
select option "Actuation Test of smart junction box".
|
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the heater and A/C controller after loosening screws.
(Refer to Heating, Ventilation, Air Conditioning - "Heater & A/C Control
Unit (MANUAL)")
(Refer to Heating, Ventilation, Air Conditioning - "Heater & A/C Control
Unit (DATC)")
|
| Installation |
| 1. |
Install the heater and A/C controller to the center fascia panel.
|
| 2. |
Connect the negative (-) battery terminal.
|
