Kia Cee'd: Fuses and Relays / Relay Box (Passenger Compartment) Components and components location
Kia Cee'd JD Service Manual / Body Electrical System / Fuses and Relays / Relay Box (Passenger Compartment) Components and components location

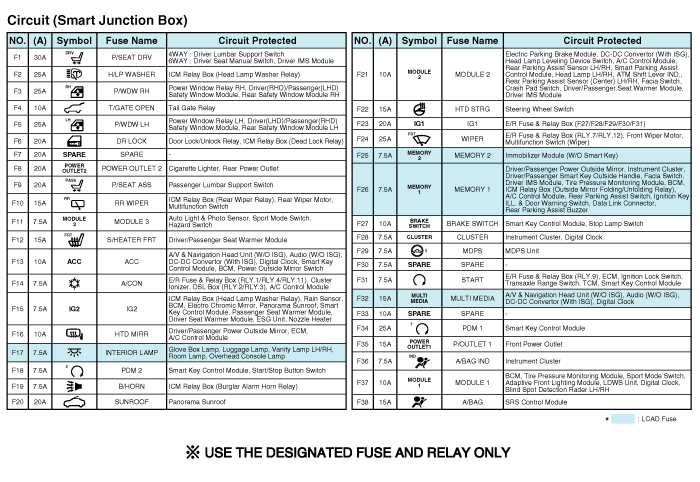

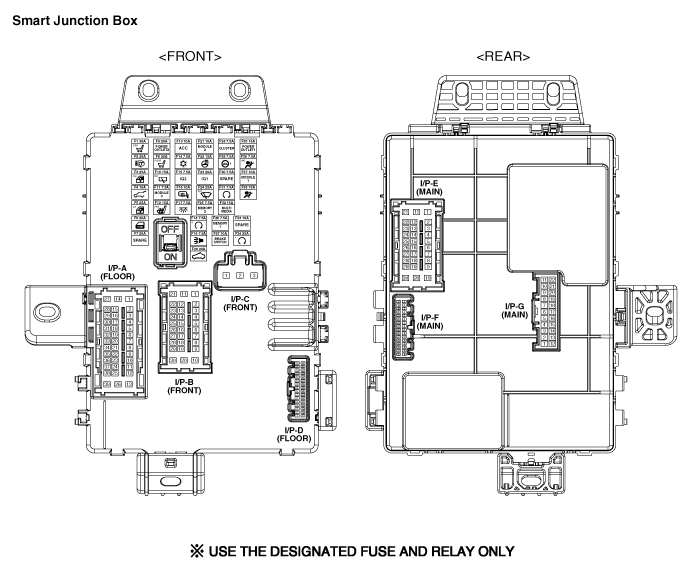

| Components |
