Kia Cee'd: Outside rearview mirror / Remote control

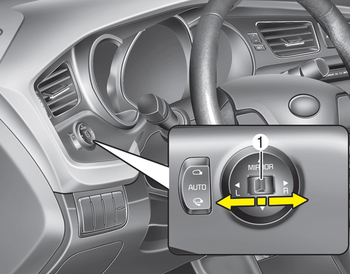

The electric remote control mirror switch allows you to adjust the position of the left and right outside rearview mirrors. To adjust the position of either mirror, move the lever (1) to R (Right) or L (Left) to select the right side mirror or the left side mirror, then press a corresponding point on the mirror adjustment control to position the selected mirror up, down, left or right.
After adjustment, put the lever into neutral (center) position to prevent inadvertent adjustment.
CAUTION
- The mirrors stop moving when they reach the maximum adjusting angles, but the motor continues to operate while the switch is pressed. Do not press the switch longer than necessary, the motor may be damaged.
- Do not attempt to adjust the outside rearview mirror by hand. Doing so may damage the parts.
Outside rearview mirror
Be sure to adjust mirror angles before
driving.
Your vehicle is equipped with both lefthand
and right-hand outside rearview
mirrors. The mirrors can be adjusted
remotely with the remote switc ...
Folding the outside rearview mirror
Manual type
To fold outside rearview mirror, grasp the
housing of mirror and then fold it toward
the rear of the vehicle.
Electric type
The outside rearview mirror can be folded
or unfold ...
