Kia Cee'd: Horn / Repair procedures
| Inspection |
Test the horn by connecting battery voltage to the 1 terminal and ground the
2 terminal.
The horn should make a sound. If the horn fails to make a sound, replace it.
Horn Relay Inspection
| 1. |

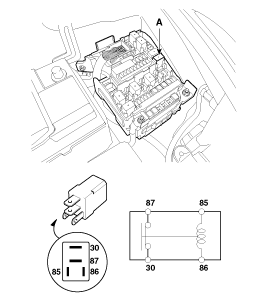

Remove the horn relay (A) from the engine room relay box.
|
| 2. |
There should be continuity between the No.30 and No.87 terminals when
power and ground are connected to the No.85 and No.86 terminals.
|
| 3. |
There should be no continuity between the No.30 and No.87 terminals
when power is disconnected.
|
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the under cover.
|
| 3. |

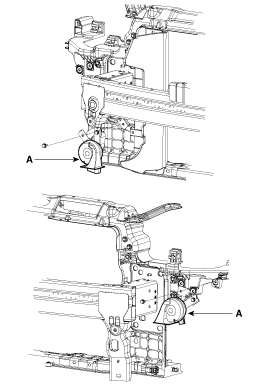

Remove the mounting bolt and disconnect the horn connector, then remove
the horn (A).
|
| Installation |
| 1. |
Connect the horn connector, then reassemble the horn.
|
| 2. |
Reassemble the under cover.
|
Components and components location
Component Location
1. Horn switch
2. Horn relay (Engine room compartment)
3. Clock spring
4. Horn (Low pitch)
5. Horn (High pitch)
...
