Kia Cee'd: ABS(Anti-Lock Brake System) / Schematic diagrams

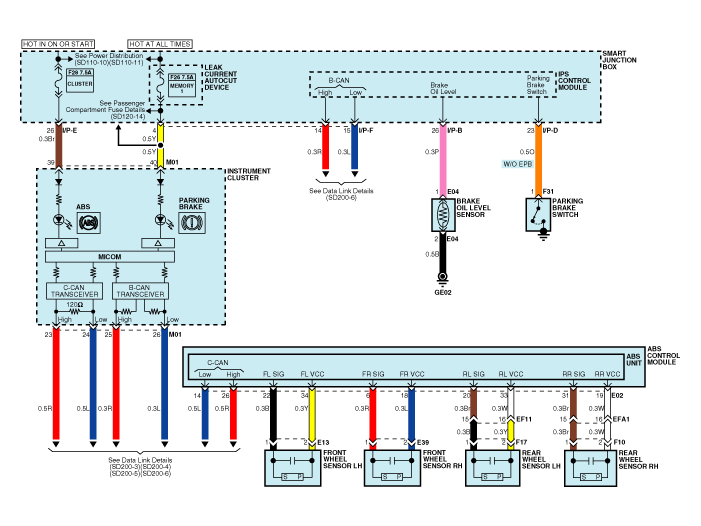

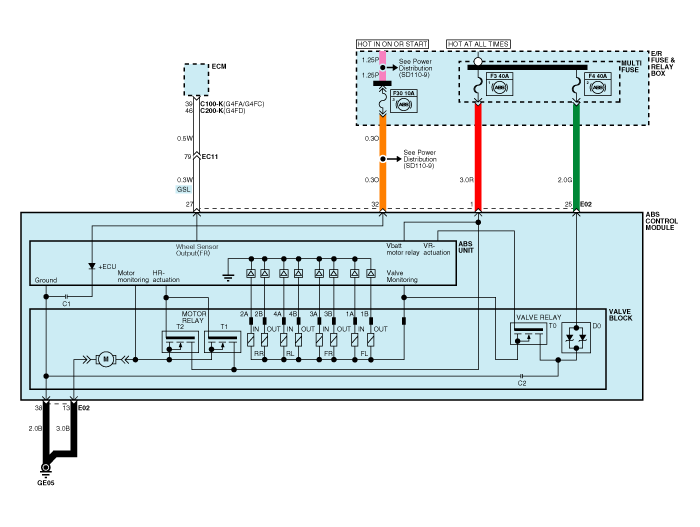

| Circuit Diagram - ABS (1) |
| Circuit Diagram - ABS (2) |

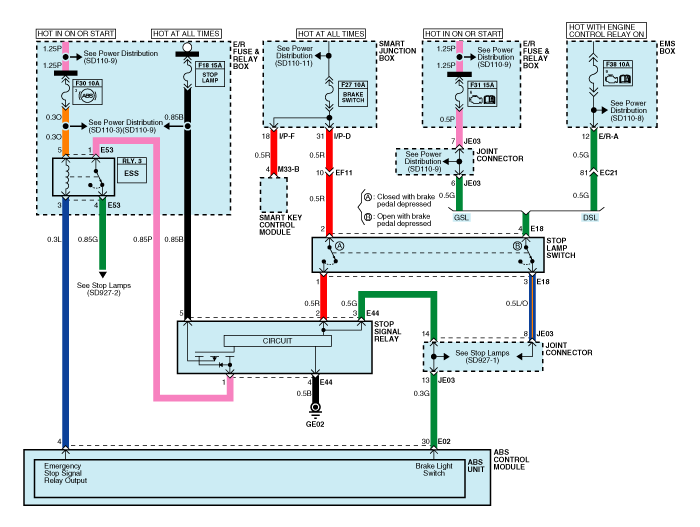

| Circuit Diagram - ABS (3) |
ECU Connector Input/Output (ABS)
|
Wire No. |
Designation |
Current |
max.permissible wire resistance R_L (mΩ) |
|
|
max |
min |
|||
|
13 |
Ground for recirculation pump |
39 A |
10 A |
- |
|
38 |
Ground for solenoid valves and ECU |
15 A |
2 A |
- |
|
1 |
Voltage supply for pump motor |
39 A |
10 A |
- |
|
25 |
Voltage supply for solenoid valves |
15 A |
2 A |
- |
|
32 |
Voltage for hybrid ECU |
1 A |
500 mA |
60 |
|
22,6,20,31 |
signal wheel speed sensor FL, FR, RL,RR |
16.8 mA |
5.9 mA |
250 |
|
34,18,33,19 |
Voltage supply for the active wheel speed sensor FL,FR, RL, RR |
16.8 mA |
5.9 mA |
250 |
|
30 |
Brake light switch (Signal) |
10 mA |
5 mA |
250 |
|
14 |
CAN Low |
30 mA |
20 mA |
250 |
|
26 |
CAN High |
30 mA |
20 mA |
250 |
|
27 |
Wheel speed sensor output |
Open Drain |
- |
- |
ABS Hecu Connector
|
Connector terminal |
Specification |
Condition |
|
|
Number |
Description |
||
|
13 |
Ground for recirculation pump |
Current range: Min.10A Max. 39A |
Always |
|
38 |
Ground for solenoid valves and ECU |
Current range: Min.2A Max. 15A |
Always |
|
1 |
Voltage supply for pump motor |
Battery voltage |
Always |
|
25 |
Voltage supply for solenoid valves |
||
|
34 |
Voltage supply for the active wheel speed sensor FL,FR, RL, RR |
Battery voltage |
IG On |
|
18 |
|||
|
33 |
|||
|
19 |
|||
|
22 |
signal wheel speed sensor FL, FR, RL,RR |
Voltage(High) : 0.26 ~ 0.37 V Voltage (Low) : 0.13 ~ 0.18 V |
On driving |
|
6 |
|||
|
20 |
|||
|
31 |
|||
|
32 |
Voltage for hybrid ECU |
Battery voltage |
KEY ON/OFF |
|
30 |
Brake light switch |
Voltage (High) ≥ 4.5 * IG ON Voltage (Low) ≤ 2.0 * IG ON |
Brake On/Off |
Sensor Output On GDS(ABS)
|
|
Description |
Abbreviation |
Unit |
Remarks |
|
1 |
Vehicle speed sensor |
VEH. SPD |
Km/h |
|
|
2 |
Battery voltage |
BATT. VOL |
V |
|
|
3 |
FL Wheel speed sensor |
FL WHEEL |
Km/h |
|
|
4 |
FR Wheel speed sensor |
FR WHEEL |
Km/h |
|
|
5 |
RL Wheel speed sensor |
RL WHEEL |
Km/h |
|
|
6 |
RR Wheel speed sensor |
RR WHEEL |
Km/h |
|
|
7 |
ABS Warning lamp |
ABS LAMP |
- |
|
|
8 |
EBD Warning lamp |
EBD LAMP |
- |
|
|
9 |
Brake Lamp |
B/LAMP |
- |
|
|
10 |
Pump relay state |
PUMP RLY |
- |
|
|
11 |
Valve relay state |
VALVE RLY |
- |
|
|
12 |
Motor |
MOTOR |
- |
|
|
13 |
Front Left valve(IN) |
FL INLET |
- |
|
|
14 |
Front Right valve (IN) |
FR INLET |
- |
|
|
15 |
Rear Left valve (IN) |
RL INLET |
- |
|
|
16 |
Rear Right valve (IN) |
RR INLET |
- |
|
|
17 |
Front Left valve (OUT) |
FL OUTLET |
- |
|
|
18 |
Front Right valve (OUT) |
FR OUTLET |
- |
|
|
19 |
Rear Left valve(OUT) |
RL OUTLET |
- |
|
|
20 |
Rear Right valve (OUT) |
RR OUTLET |
- |
|
Description and operation
Description
This specification applies to HCU(Hydraulic Control Unit) and ECU(Electronic
Control Unit) of the HECU.(Hydraulic and Electronic Control Unit)
This specification is ...
